Basic Specifications
Model
Temperature Sensing Catheter
Sterilization
Ethylene Oxide (EO)
Usage
Hospital / Single Use
Classification
Class II Medical Device
Certification
CE, ISO13485, FDA
Material
100% Medical Grade Silicone
Product Overview

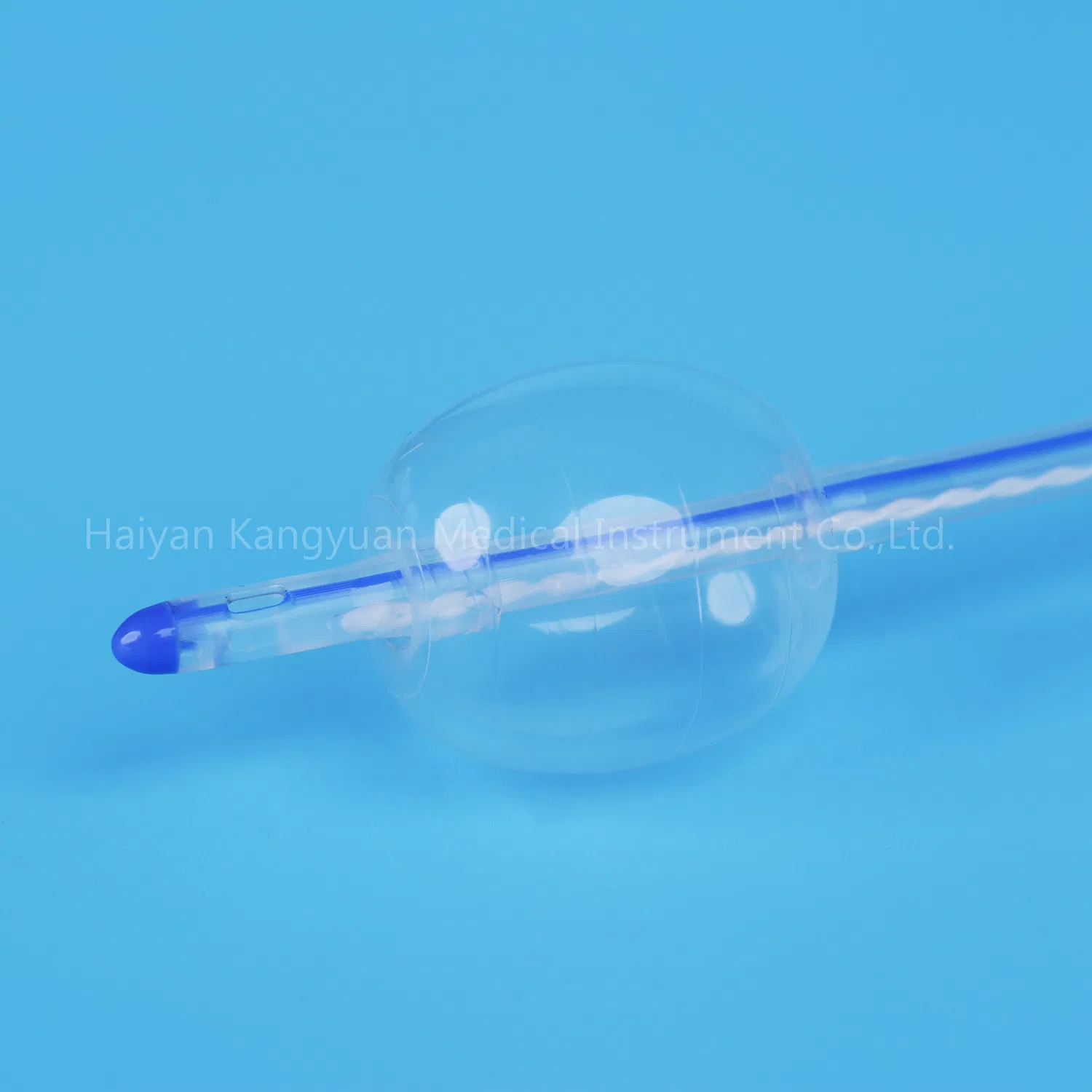

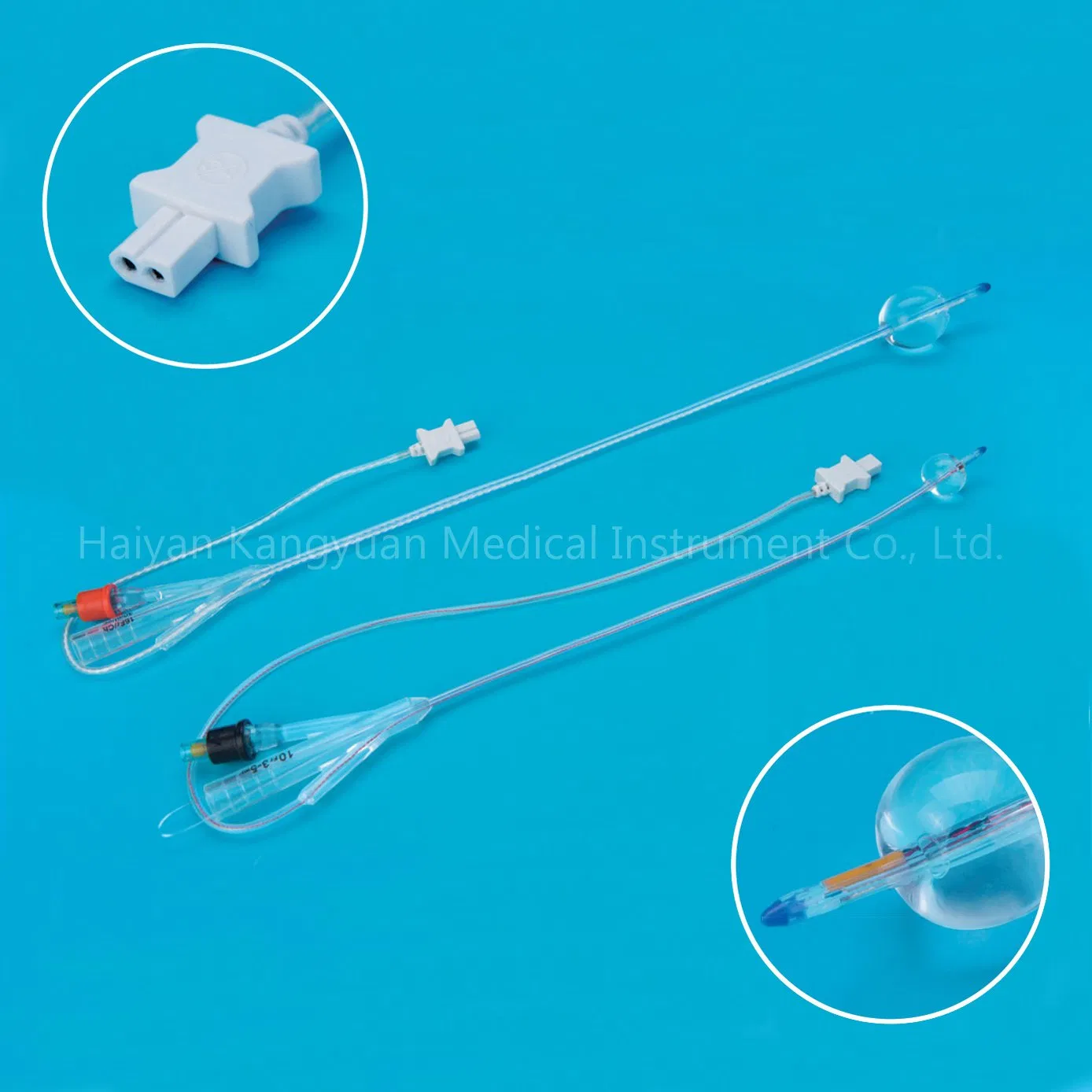

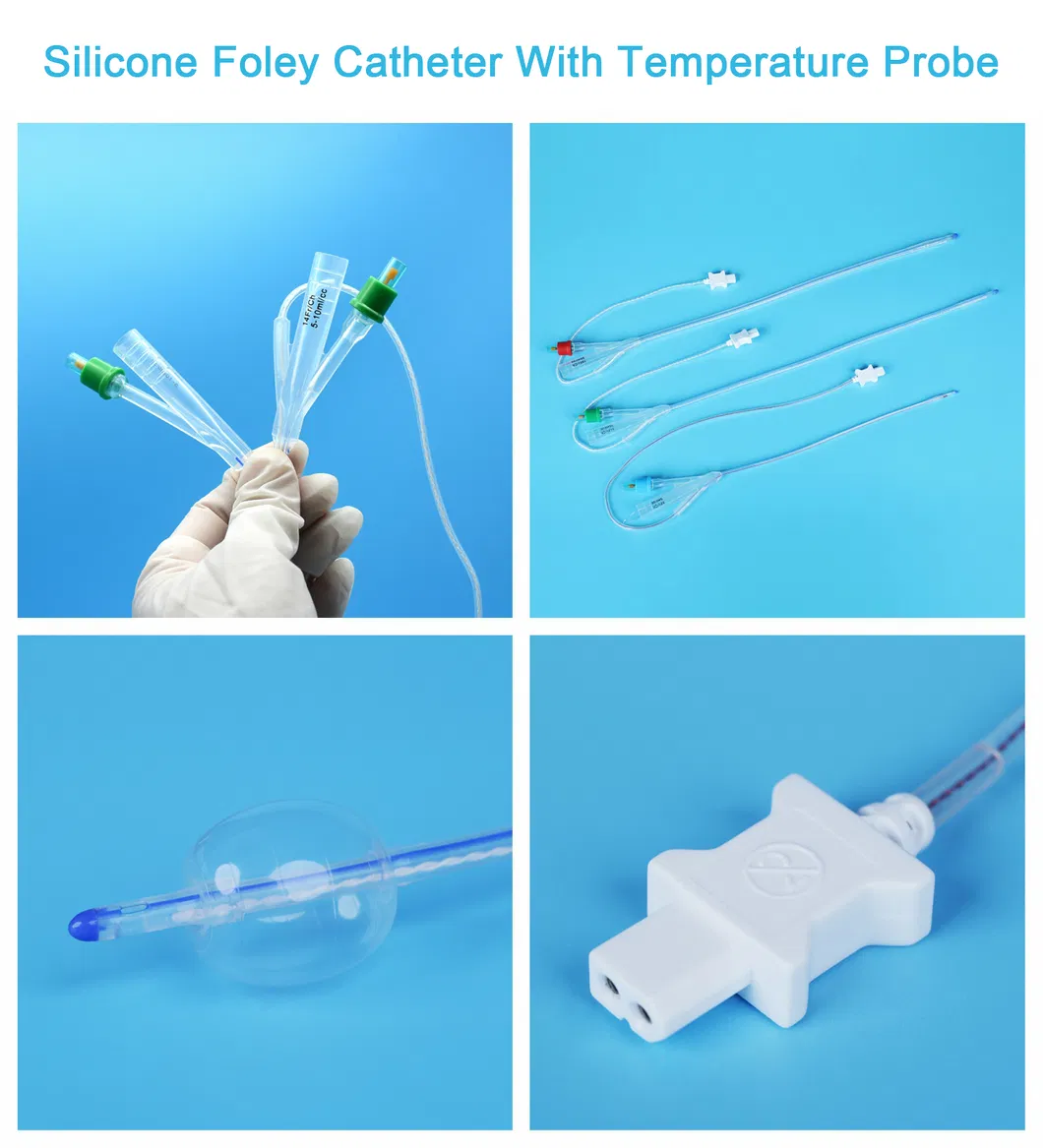

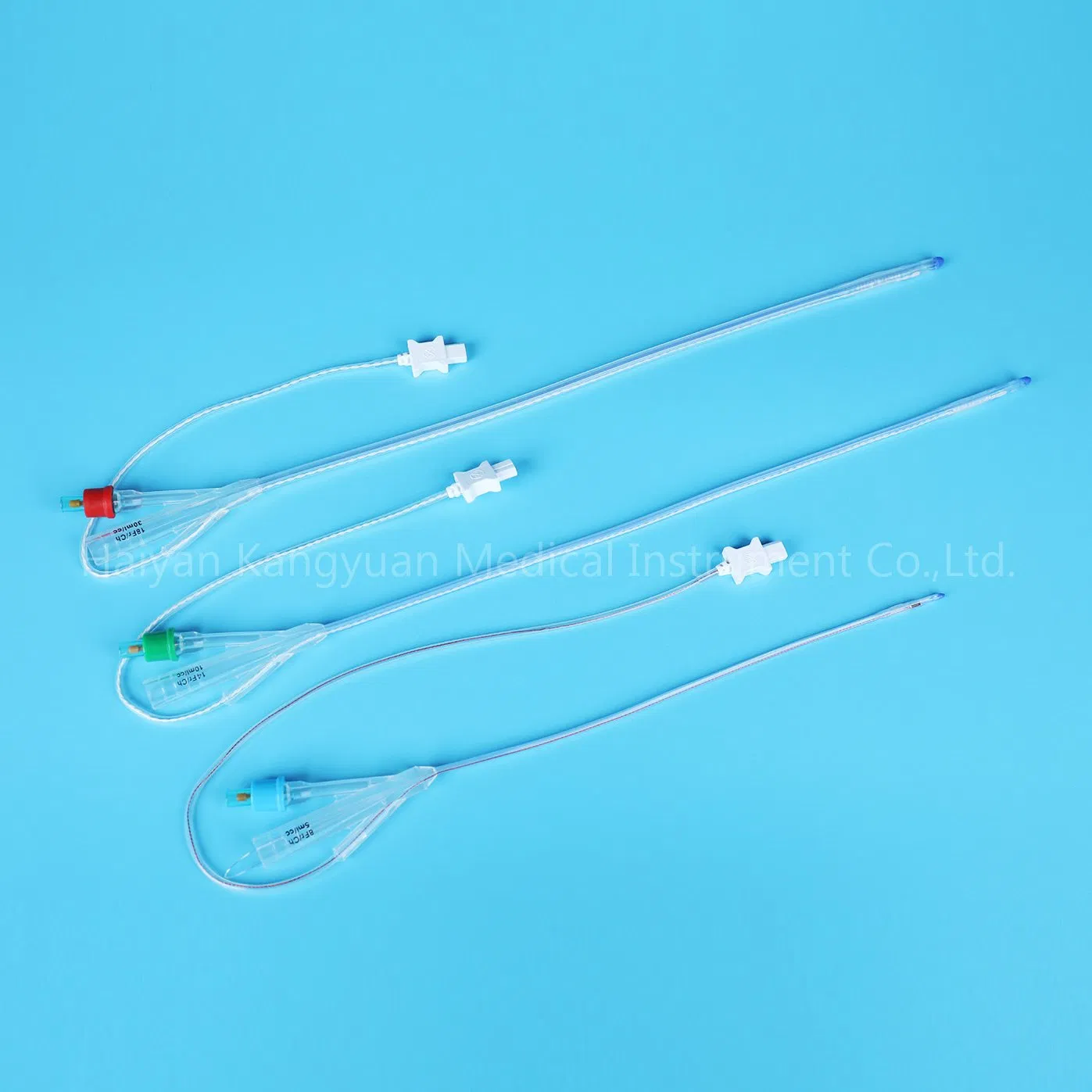

Temperature Sensing Silicone Foley Catheter with Temperature Sensor Probe
The Temperature Sensing Foley Catheter is a dual-purpose medical device designed for continuous urinary drainage and simultaneous monitoring of core body temperature. It is highly effective for use before, during, and after surgical procedures.
🛡️ Key Features
- 100% pure medical grade silicone for biocompatibility.
- Integrated temperature sensor probe near the tip.
- Bullet-shaped round tip for easy and comfortable insertion.
- Radiopaque tip and contrast line for X-ray visibility.

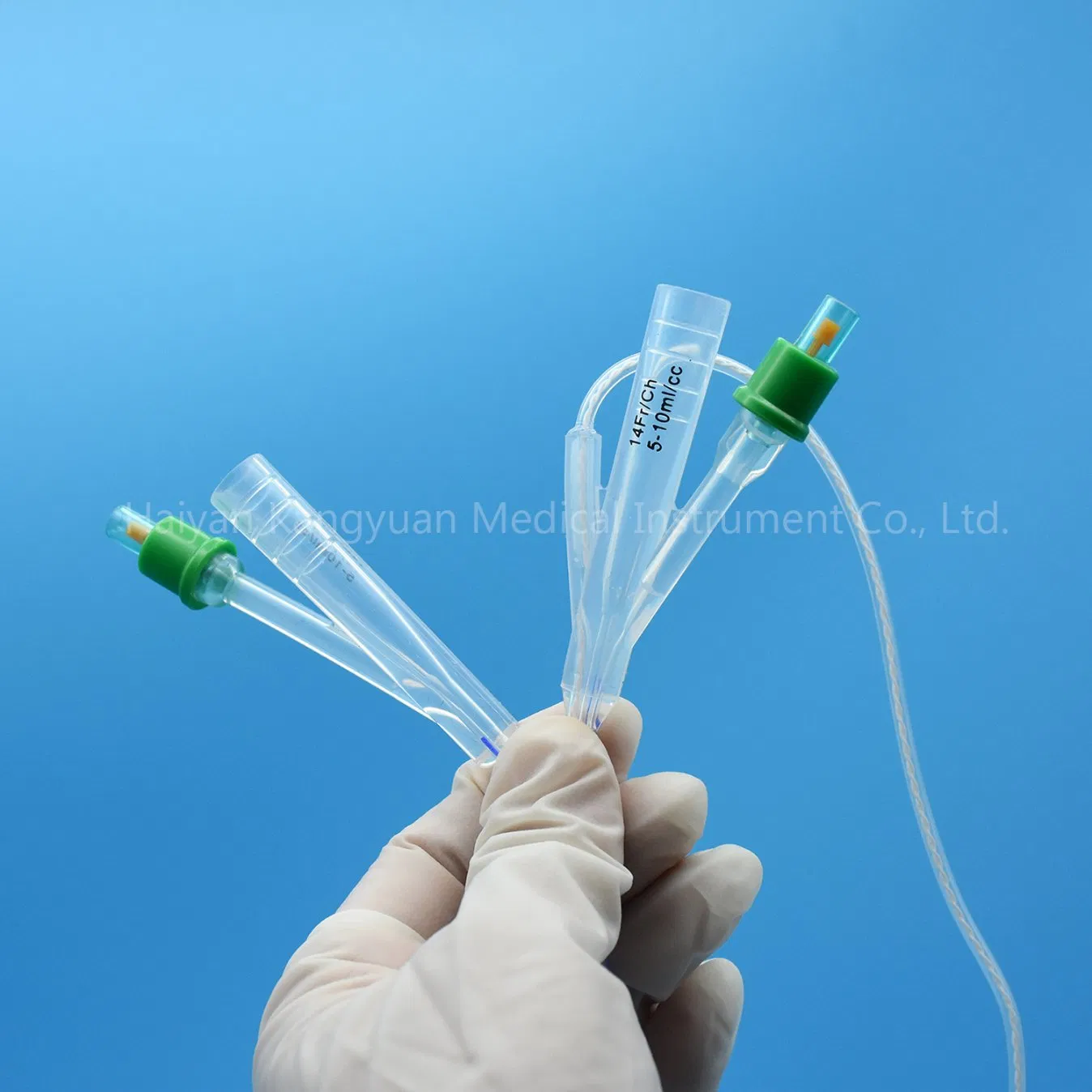

- Color-coded funnels for rapid size identification.
- Transparent design for clear visual monitoring.
📈 Clinical Benefits
- Accurately correlates bladder temperature to brain temperature.
- Helps maintain normothermia to avoid cardiac events and infections.
- Reduces nursing time by providing continuous measurements.
- Safe for patients with latex allergies.
- Compatible with most patient monitors and anesthesia machines.
Technical Specifications
| Size (FR/CH) |
Length |
Application |
Balloon Volume |
| 8 FR/CH | 27 CM | Pediatric | 5 ML |
| 10 FR/CH | 27 CM | Pediatric | 5 ML |
| 12 FR/CH | 33/41 CM | Adults | 10 ML |
| 14 FR/CH | 33/41 CM | Adults | 10 ML |
| 16 FR/CH | 33/41 CM | Adults | 10 ML |
| 18 FR/CH | 33/41 CM | Adults | 10 ML |
| 20 FR/CH | 33/41 CM | Adults | 10 ML |
| 22 FR/CH | 33/41 CM | Adults | 10 ML |
| 24 FR/CH | 33/41 CM | Adults | 10 ML |
Note: Specifications such as length and balloon volume are negotiable based on requirements.
Indications for Use
This catheter is recommended for patients in the following conditions:
- Post-urological procedures where bladder bleeding may occur.
- Management of benign prostates.
- Clot evacuation in hematuric patients.
- Transurethral resection of bladder tumors.
- Critical care situations requiring core temperature monitoring.
Packaging & Logistics
Standard Packing:
- 1 pc per sterile blister bag
- 10 pcs per inner box
- 200 pcs per export carton
- Carton Size: 52 x 35 x 25 cm
Payment Options: T/T, L/C
Capacity: 600,000 PCS
Frequently Asked Questions
Q1: What is the primary advantage of a temperature-sensing catheter?
A: It allows for continuous and highly accurate monitoring of core body temperature directly from the bladder, which is critical during surgery and intensive care.
Q2: Why is silicone preferred over latex for these catheters?
A: 100% silicone is biocompatible, reduces the risk of tissue irritation, and is safe for patients with latex allergies. It also has a wider drainage lumen.
Q3: How is the temperature data transmitted to the monitor?

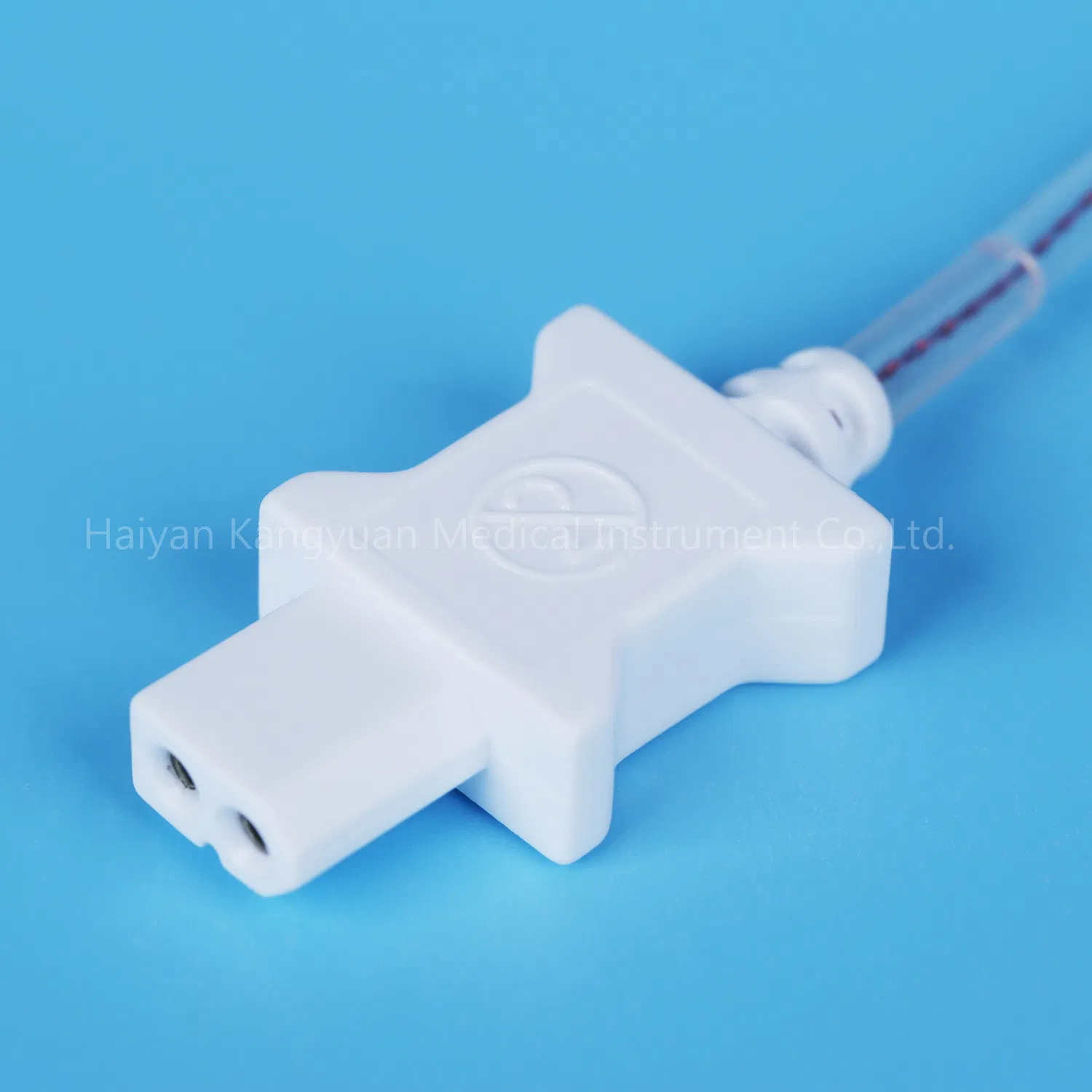

A: The catheter features an integrated wire and connector port that provides a moisture-resistant, sealed connection to standard patient monitoring equipment.
Q4: Are these catheters suitable for pediatric use?
A: Yes, we provide sizes starting from 8 FR/CH and 10 FR/CH specifically designed for pediatric requirements.
Q5: Can this catheter be used for long-term applications?
A: Yes, medical-grade silicone is suitable for long-term use, helping to reduce the frequency of catheter changes and associated costs.
Q6: What certifications does the product hold?
A: The product is fully compliant with international standards, holding CE, ISO 13485, and FDA certifications.
