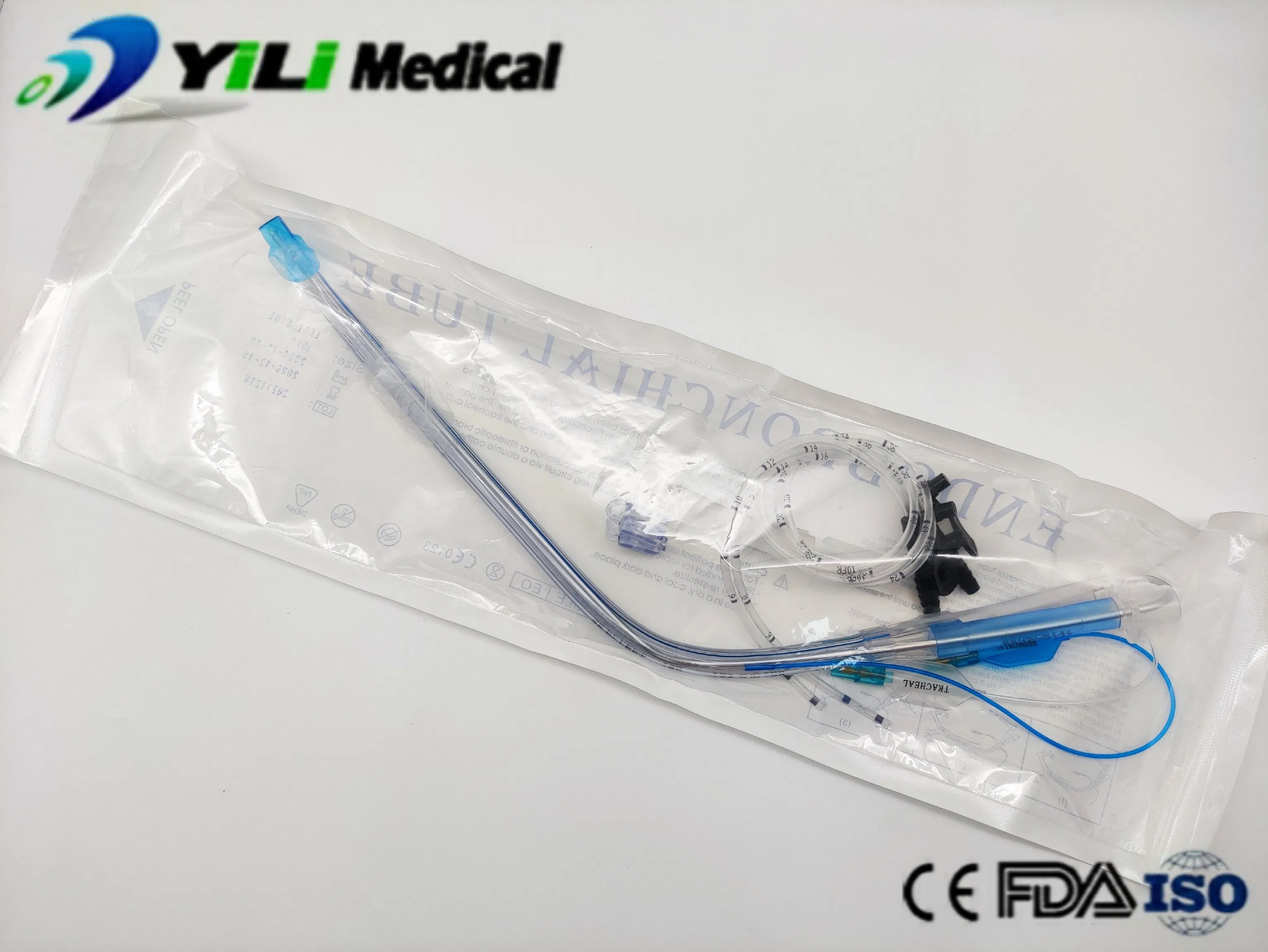

Respiratory Anesthesia Medical Disposables Double Lumen Endotracheal Tube

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Information
Model NO.
size 26Fr-42Fr (Left or Right)
Sterilization
Ethylene Oxide Sterilization
Guarantee Period
Five Years
Group
Adult
Usage
Single-Use
Color
Transparent
Certification
CE & ISO13485
HS Code
9018390000
Product Description

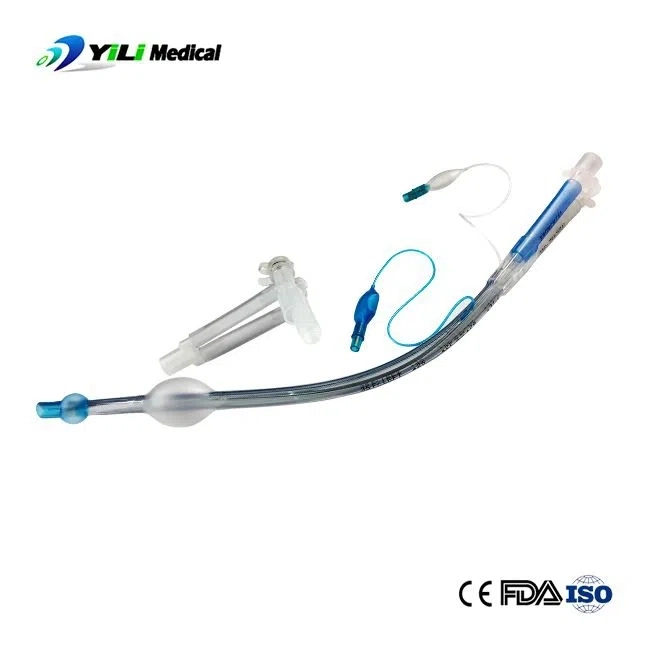

High Quality Disposable PVC Double Lumen Endotrachial Tube with Stylet

The Double Lumen Endotrachial Tube (DLT) is designed for tracheal intubation during thoracic surgery to achieve selective one-sided ventilation of either the right or the left lung. It is compatible with anesthesia ventilators for establishing artificial airways in clinical chest operations or for critical patients requiring single-lung bronchial intubation.

Main Components

Constructed from medical-grade PVC and stainless steel, the kit includes: bronchial intubation (capsule, double-lumen catheter, inflatable tube, indicating balloon, one-way valve, joint, stylet), suction catheter, universal joint, and Y-type three-way connector. The product is supplied sterile.

Key Features
Applications: Used for single-lung aerating in thorax operation or gravity patients.
Low-pressure tube and bronchial cuff design helps reduce mucosal lesions.
Color-coded pilot balloon and bronchial cuff for easy position judgment.
Includes 3 phlegm suction catheters (2 graduated for exact positioning).
Swivel connector configuration for flexible ventilator positioning.
Available Specifications: Fr32, Fr35, Fr37, Fr39, Fr41 (Left and Right).

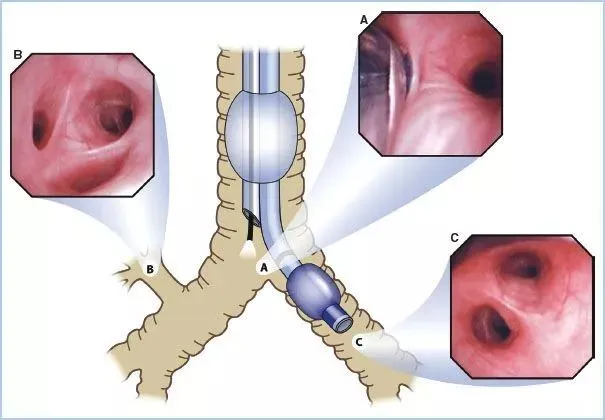

Blue bronchial capsule assists bronchoscopy in determining distal catheter position.

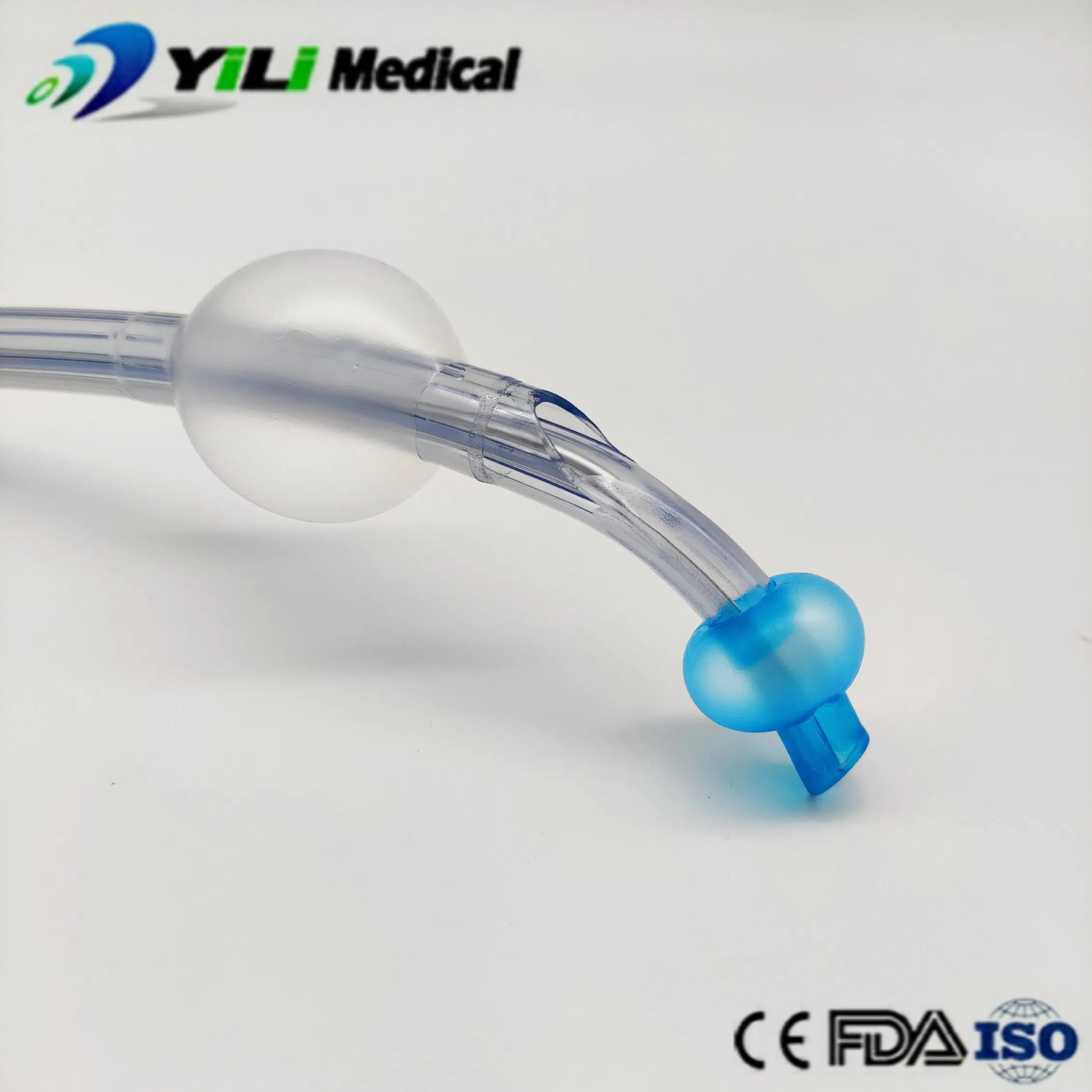

Slightly bent front end improves placement in the main bronchus.
Opaque X-ray marks at the tip and above the capsule for radiographic verification.
Fixed shape guide wire included for precise placement.
MaterialPVC and Silicone materials available
ColorTransparent
Size Range28, 32, 35, 37, 39 and 41 French sizes (Left & Right)
Special FeaturesUpgrade PU Micro-thin Balloon; Softer tube with simple connector; Smooth heating tip.
ApplicationOne-lung ventilation (pulmonary isolation) for controlled lung blocking.
PackingComplete kit including Y Connector, Suction Tube, and Stylet.

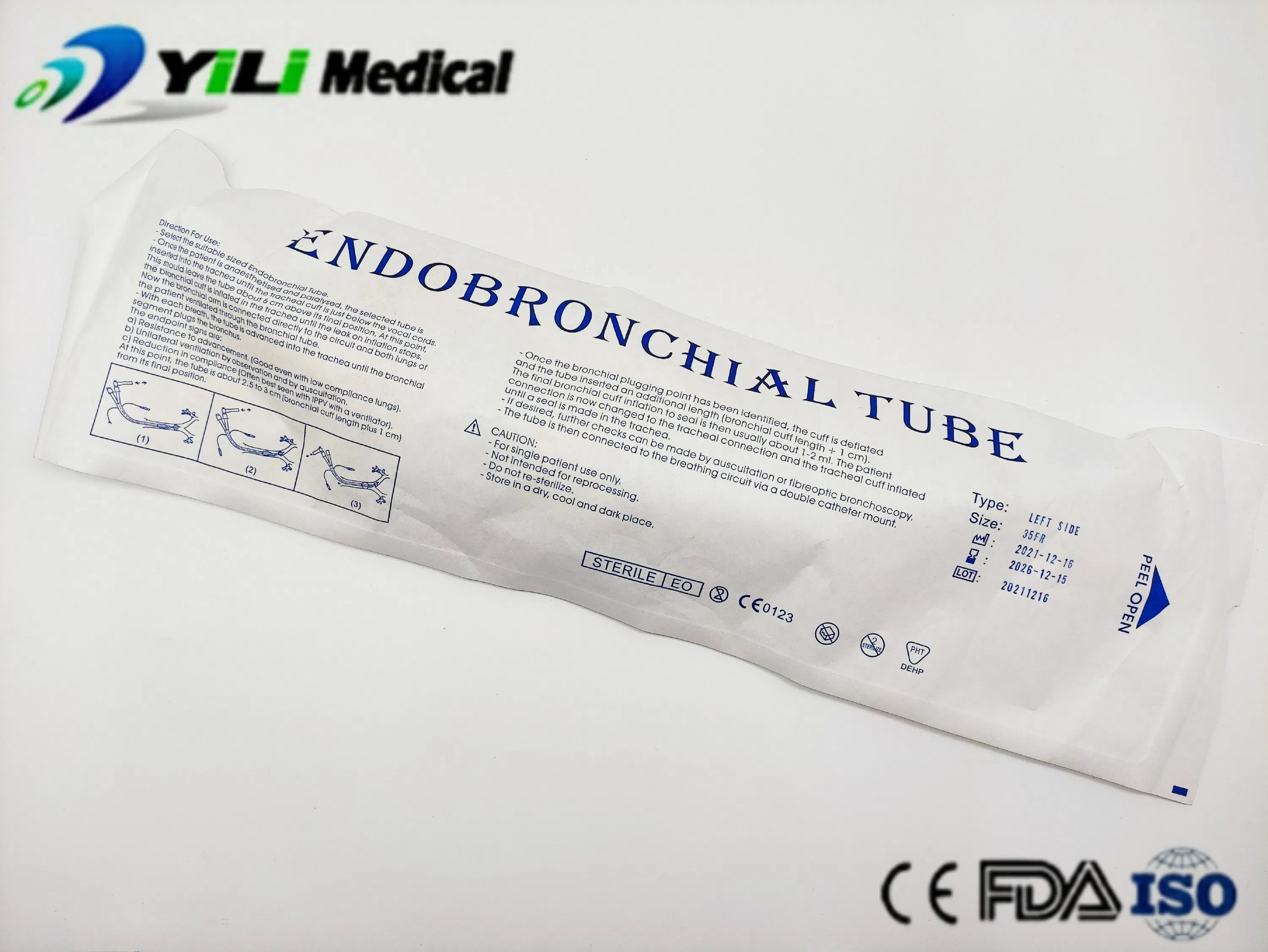

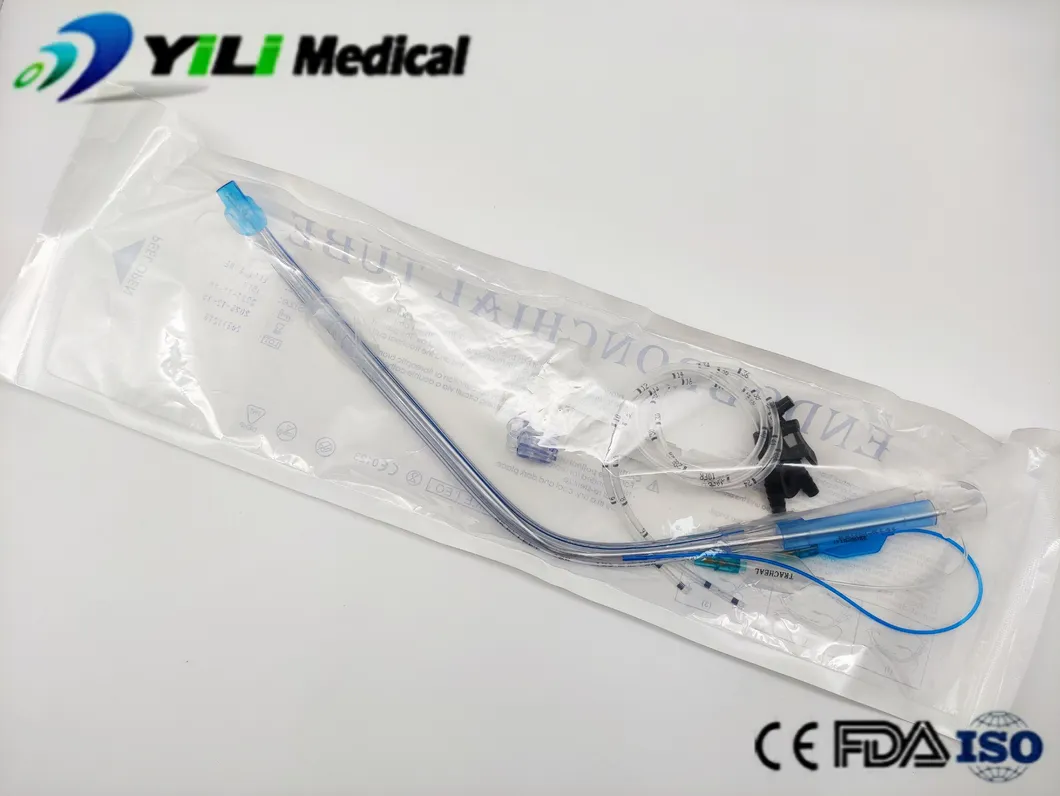

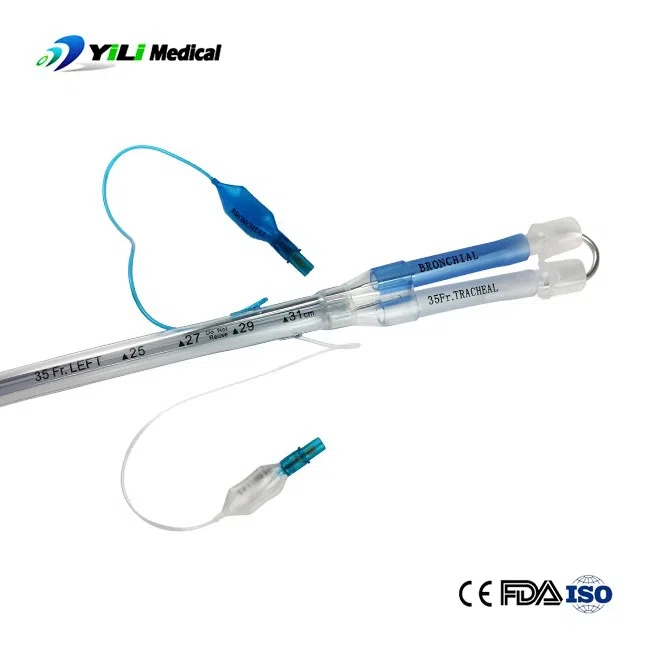

Detailed Photos

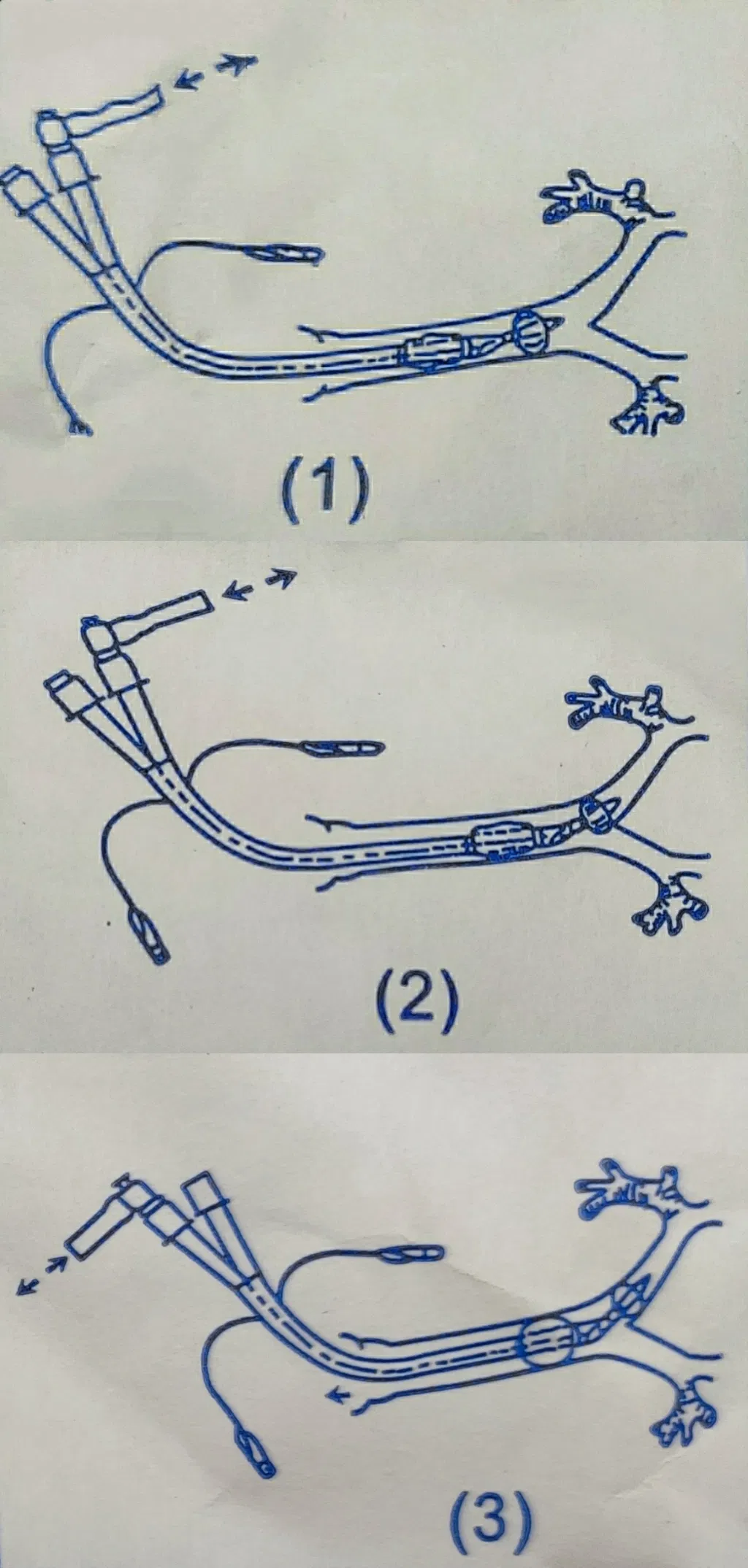

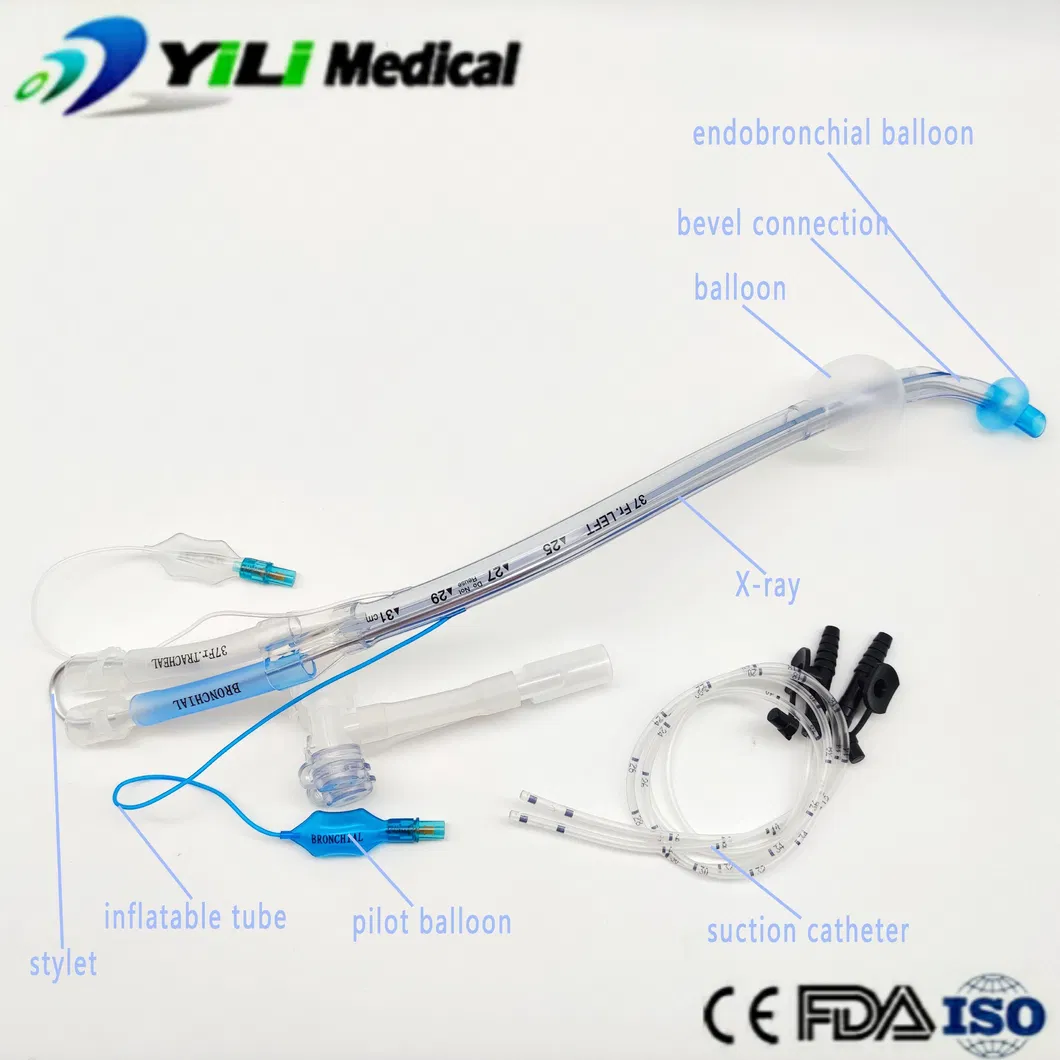

Product Structure Diagram
Usage Instructions
1. Carefully remove the product from the sterilization bag.
2. Firmly connect the double-lumen bronchial tube to the conical connector.
3. Before use, inject air into the indicating ball valve to check for leaks in the capsule and balloon.
4. If gas injection is difficult, straighten the indicating balloon to clear the path.
5. Ensure no air leakage and exhaust all air with a syringe before insertion.
6. Insert the tube into the patient's trachea.
7. Use a syringe to inflate the main trachea and bronchial cuffs until fixed securely.
8. Connect the joints to the anesthesia machine and ventilator.
About Our Production

We are a professional manufacturer and supplier of medical disposables with over 8 years of experience. Our facilities manage diverse product lines including breathing anesthesia, urinary, and injection infusion products, ensuring a one-stop service for medical professionals worldwide.

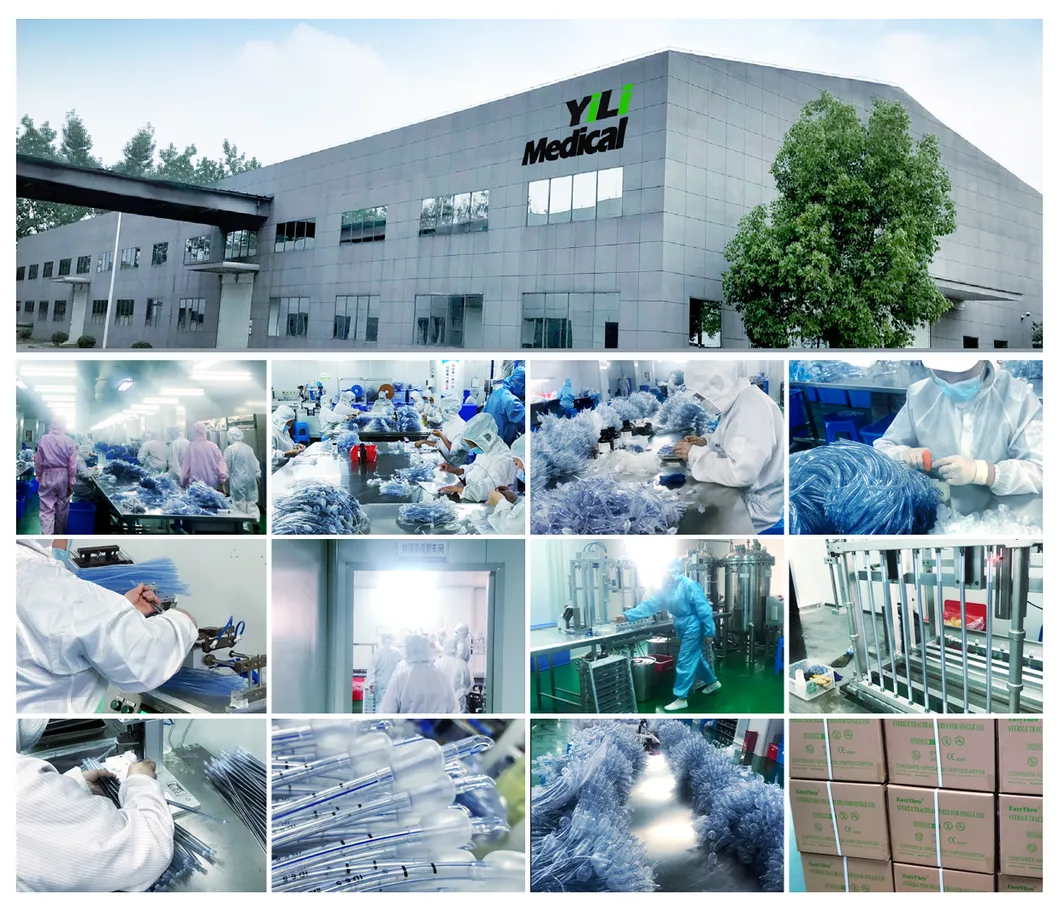

Factory Production
Exhibition & Global Presence
Packaging & Transportation
Certifications
Medical Certificates Display
Frequently Asked Questions
Can I have a sample order for testing?
Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.
What is the typical lead time for orders?
Samples require 3-5 days, while mass production typically takes 2-4 weeks for quantities exceeding 10,000 pcs.
Is there a Minimum Order Quantity (MOQ)?
We offer a low MOQ; even 1pc for sample checking is available.
How are the goods shipped and how long is the delivery?
We usually ship via DHL, UPS, FedEx, or TNT, which takes 3-5 days. Airline and sea shipping options are also available.
How do I proceed with a formal order?
First, let us know your requirements. We provide a quote, you confirm samples and place a deposit, and then we arrange production.
Can I customize the packaging with my logo?
Yes. Please inform us formally before production and confirm the design based on our sample.
