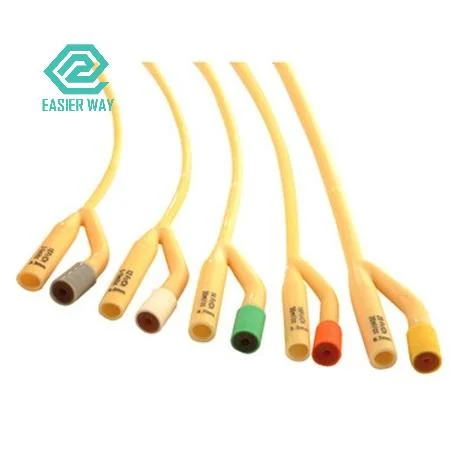

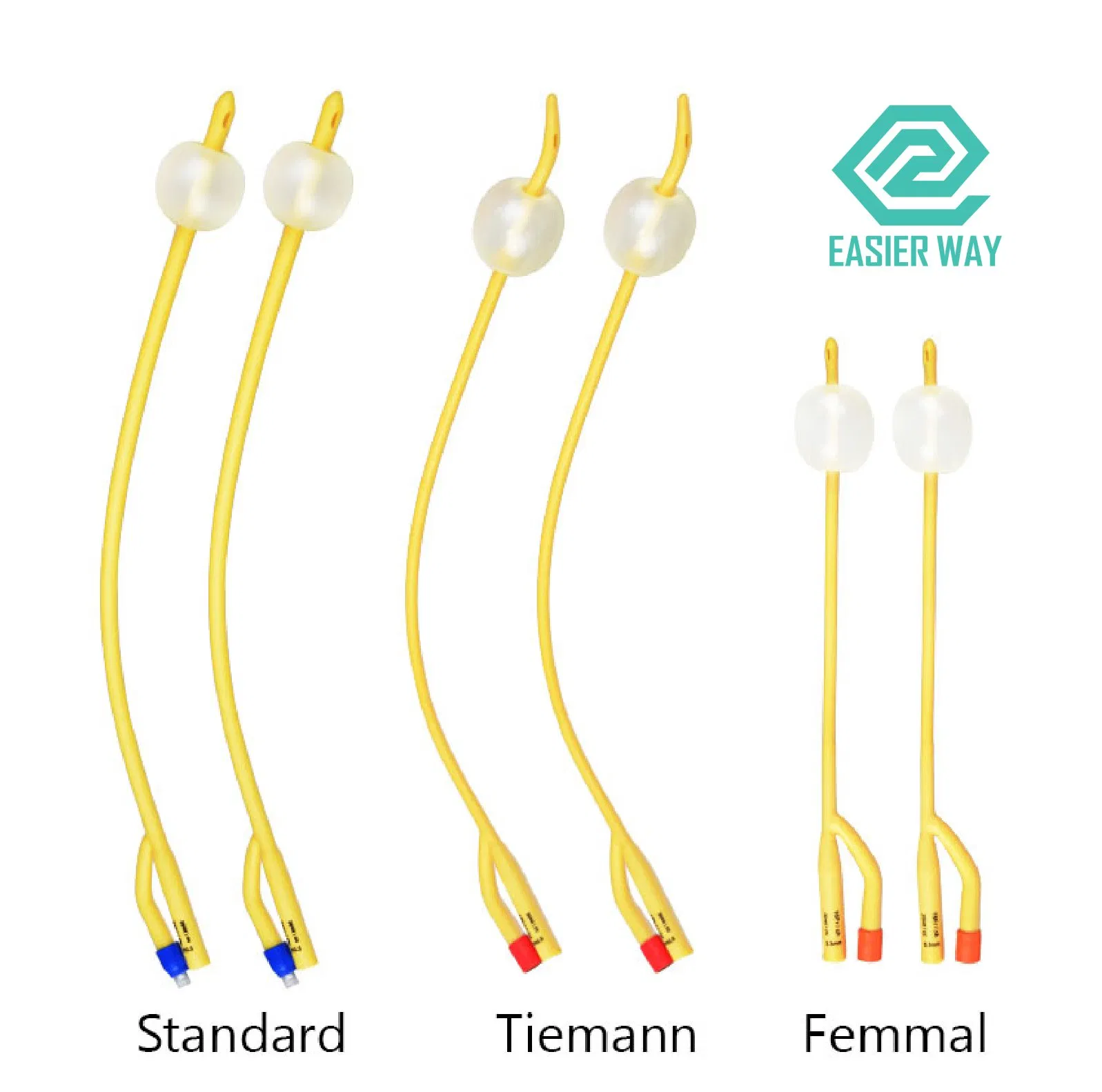

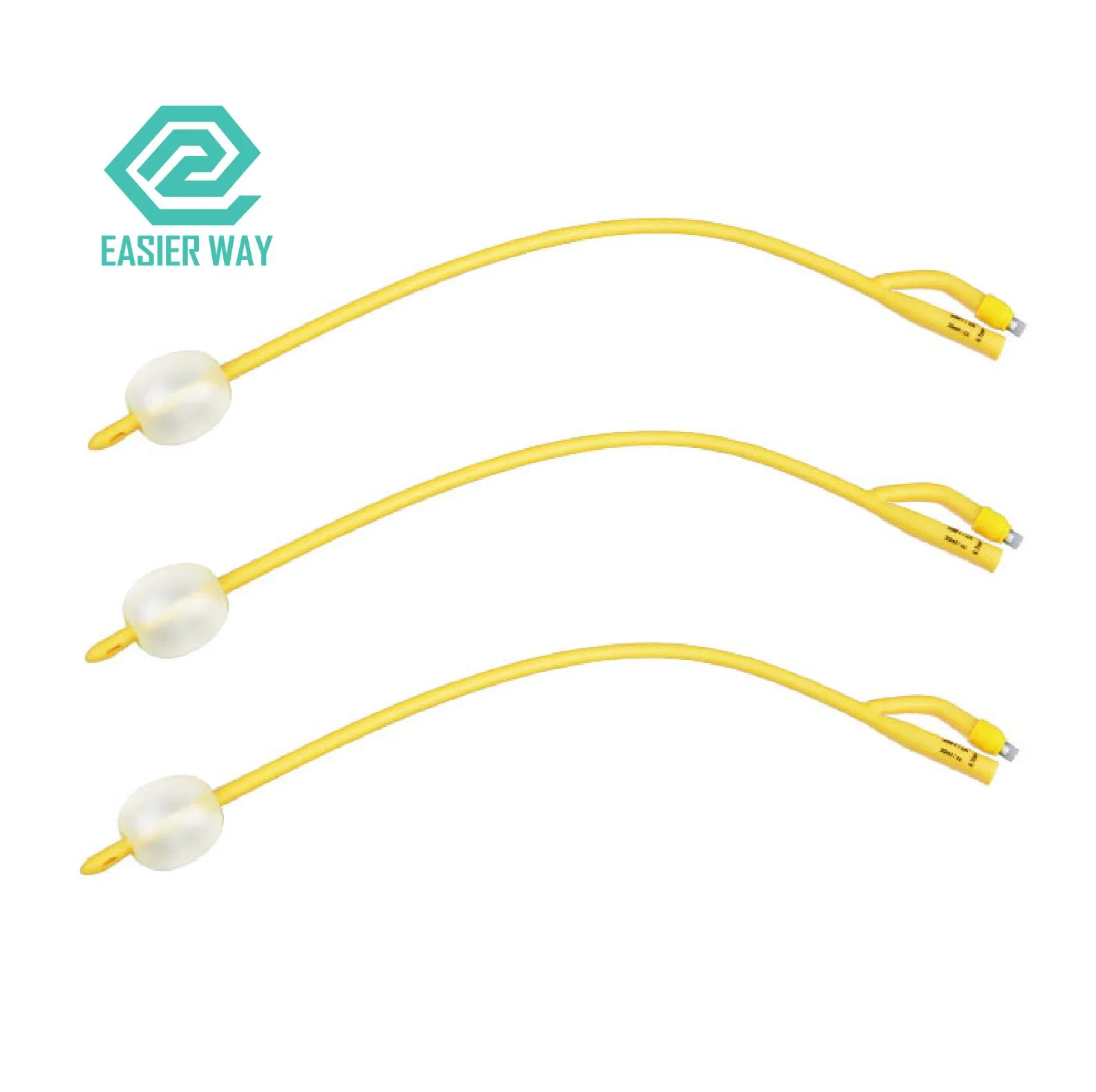

Nature rubber latex urinary foley catheters with balloon
The disposable urinary catheter, made of natural latex, is primarily used for draining the bladder for temporary or short-term use. An indwelling catheter collects urine by attaching to a drainage bag.

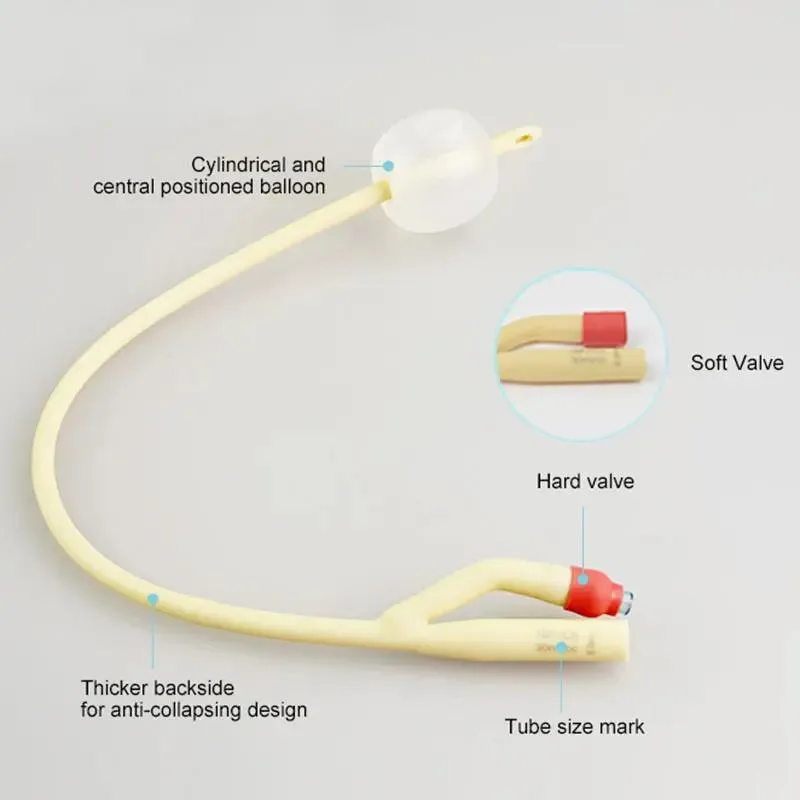

| No. | Description | Material | Function |
|---|---|---|---|
| 1 | Drainage funnel | Nature latex | Connect with urine bag |
| 2 | Irrigation funnel | Nature latex | Connection with syringe or cleaning machine |
| 3 | Inflation funnel | Nature latex | Sterile aqueduct for indwelling catheterization |
| 4 | Drainage lumen | Nature latex | Drainage |
| 5 | Balloon | Nature latex | Indwelling |
| 6 | Inflation valve | ABS/Rubber | Connect with syringe to inflate/deflate |
| 7 | Color-ring | Rubber | Identification of the size |

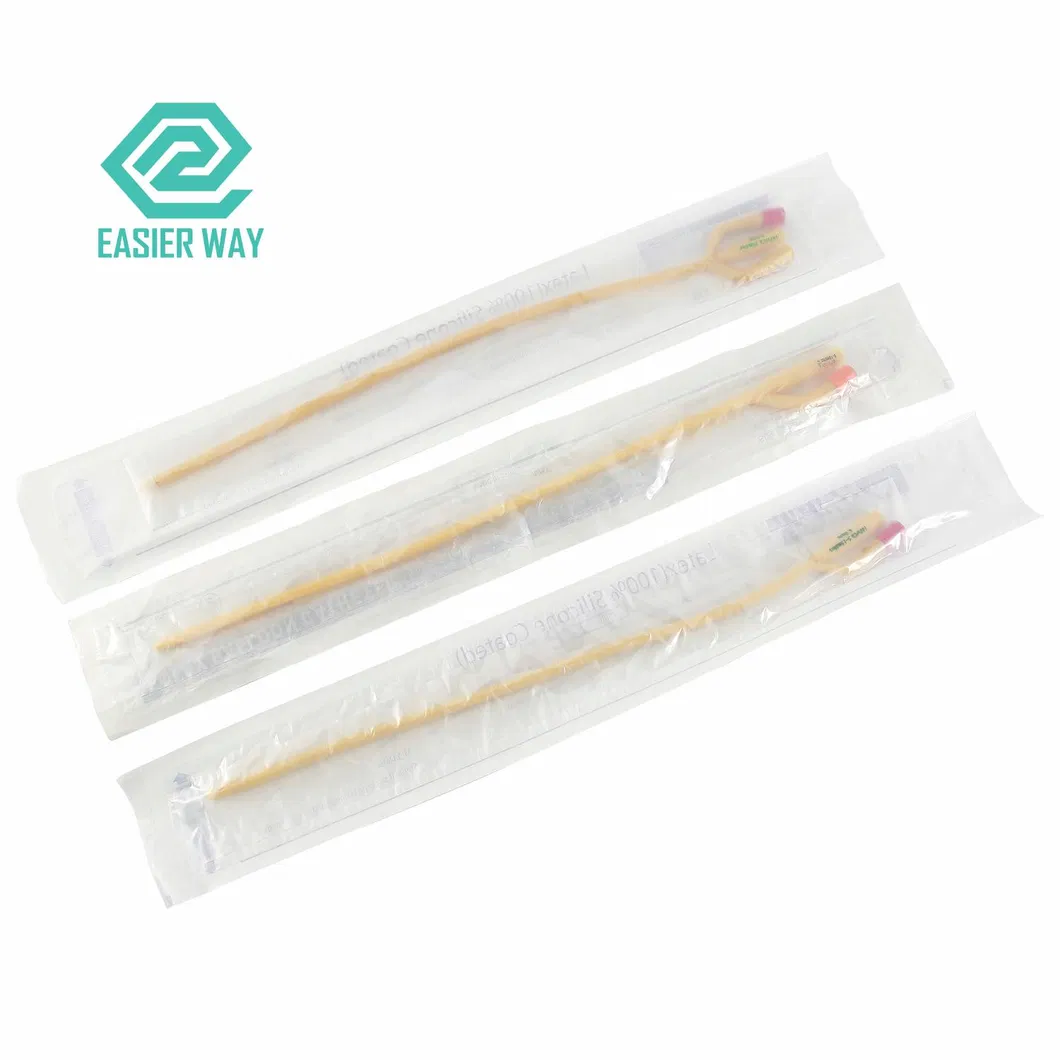

| 8 | Dialyzing paper | --- | Blister Packaging material |
| 9 | Medial film | PET/PE | Blister Packaging material |

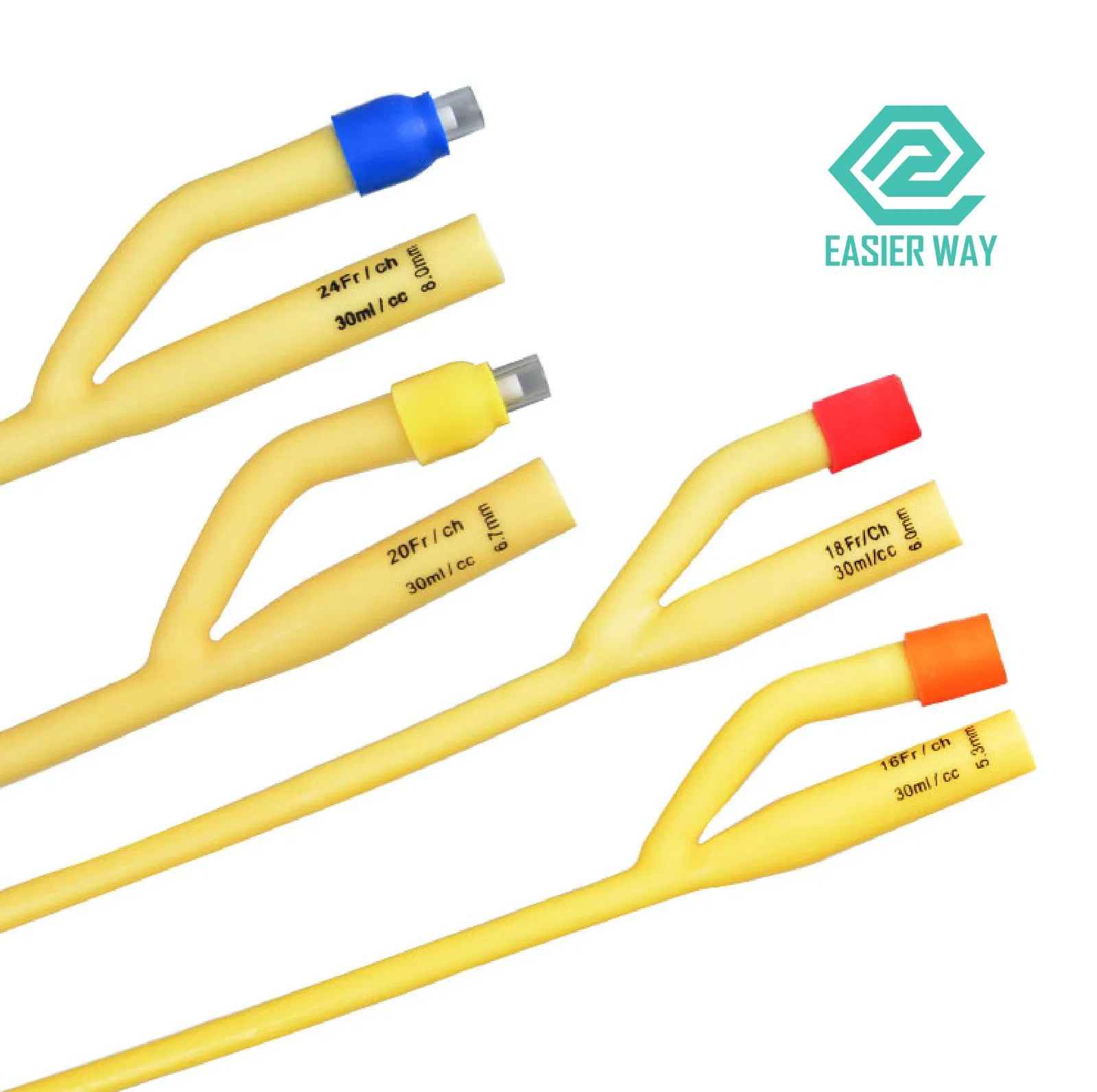

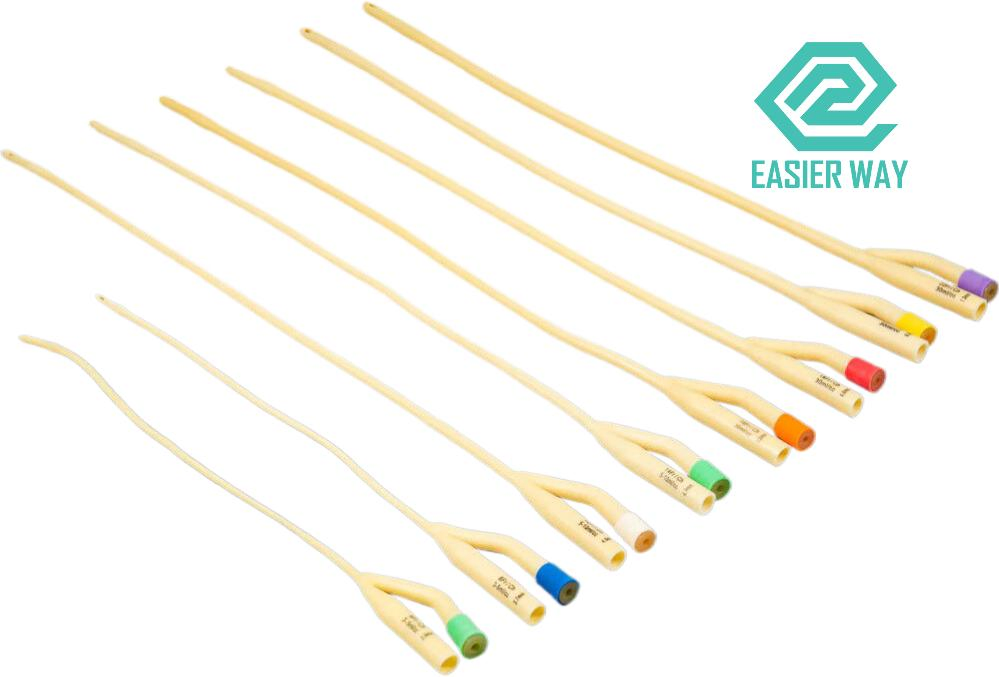

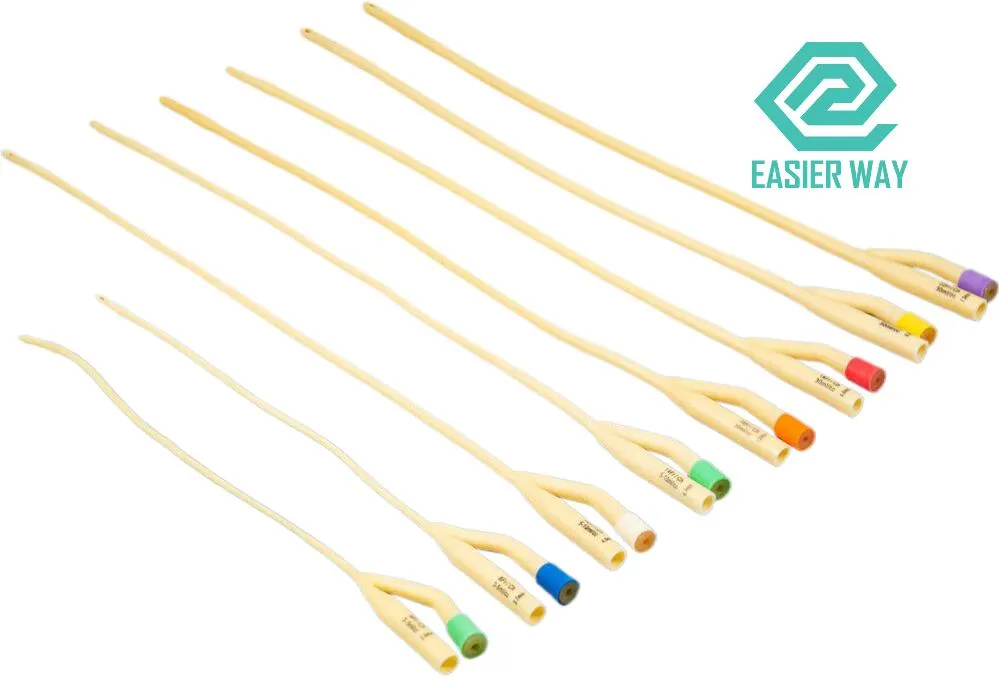

| SIZE | Diameter (mm) | Color-ring | Length (mm) | Flow rate (mL/min) |
|---|---|---|---|---|
| 8 Fr | 2.7 | Black | ≥220 (Child) | 15 |
| 10 Fr | 3.3 | Gray | ≥220 (Child) | 30 |
| 12 Fr | 4.0 | White | ≥220/360 | 50 |
| 14 Fr | 4.7 | Green | ≥220/360 | 70 |
| 16 Fr | 5.3 | Orange | ≥220/360 | 100 |
| 18 Fr | 6.0 | Red | ≥220/360 | 100 |
| 20 Fr | 6.7 | Yellow | ≥220/360 | 100 |
| 22 Fr | 7.3 | Purple | ≥220/360 | 100 |
| 24 Fr | 8.0 | Blue | ≥220/360 | 100 |
| 26 Fr | 8.7 | Pink | ≥220/360 | 100 |
Note: Without balloon, one way foley catheter has no color ring.
