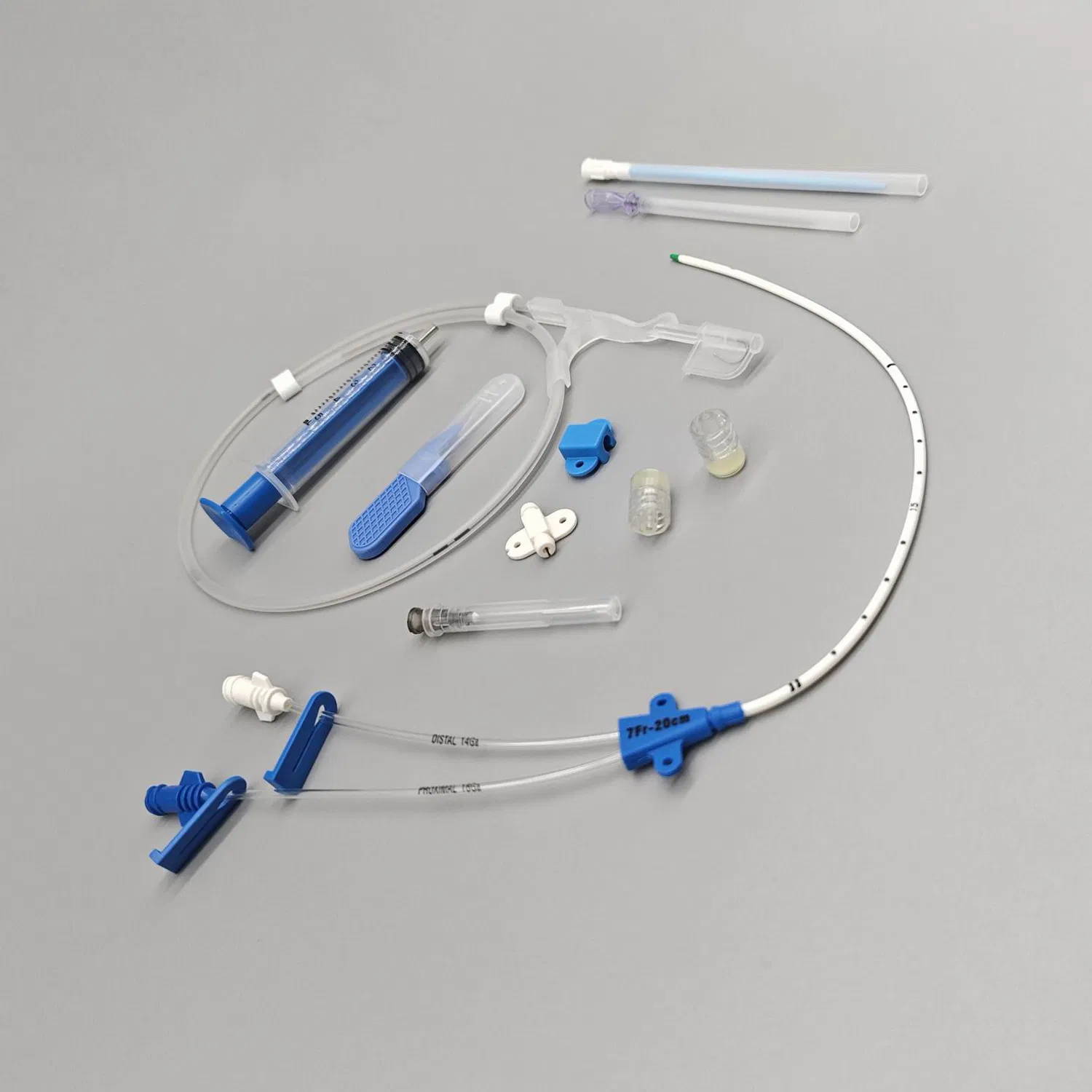

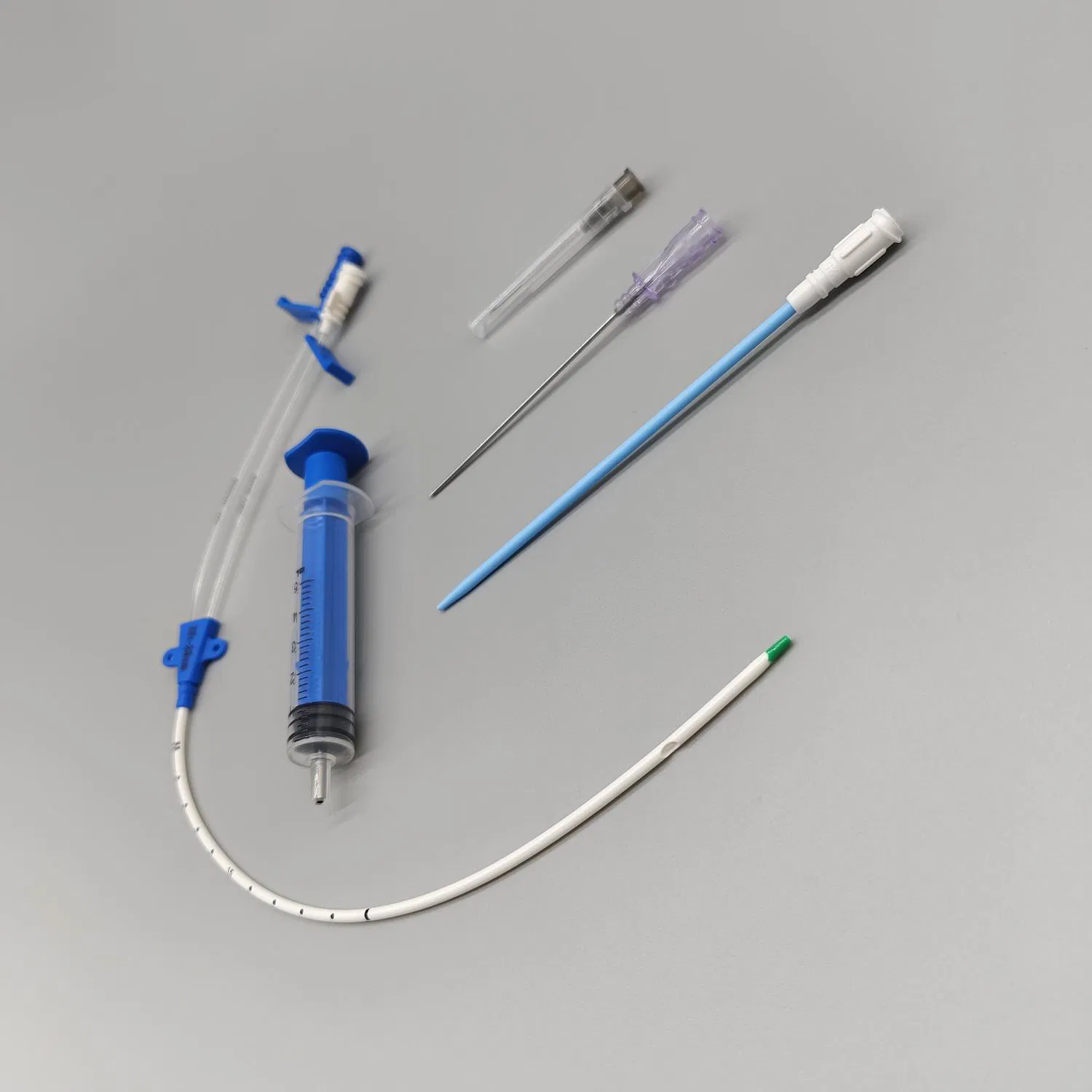

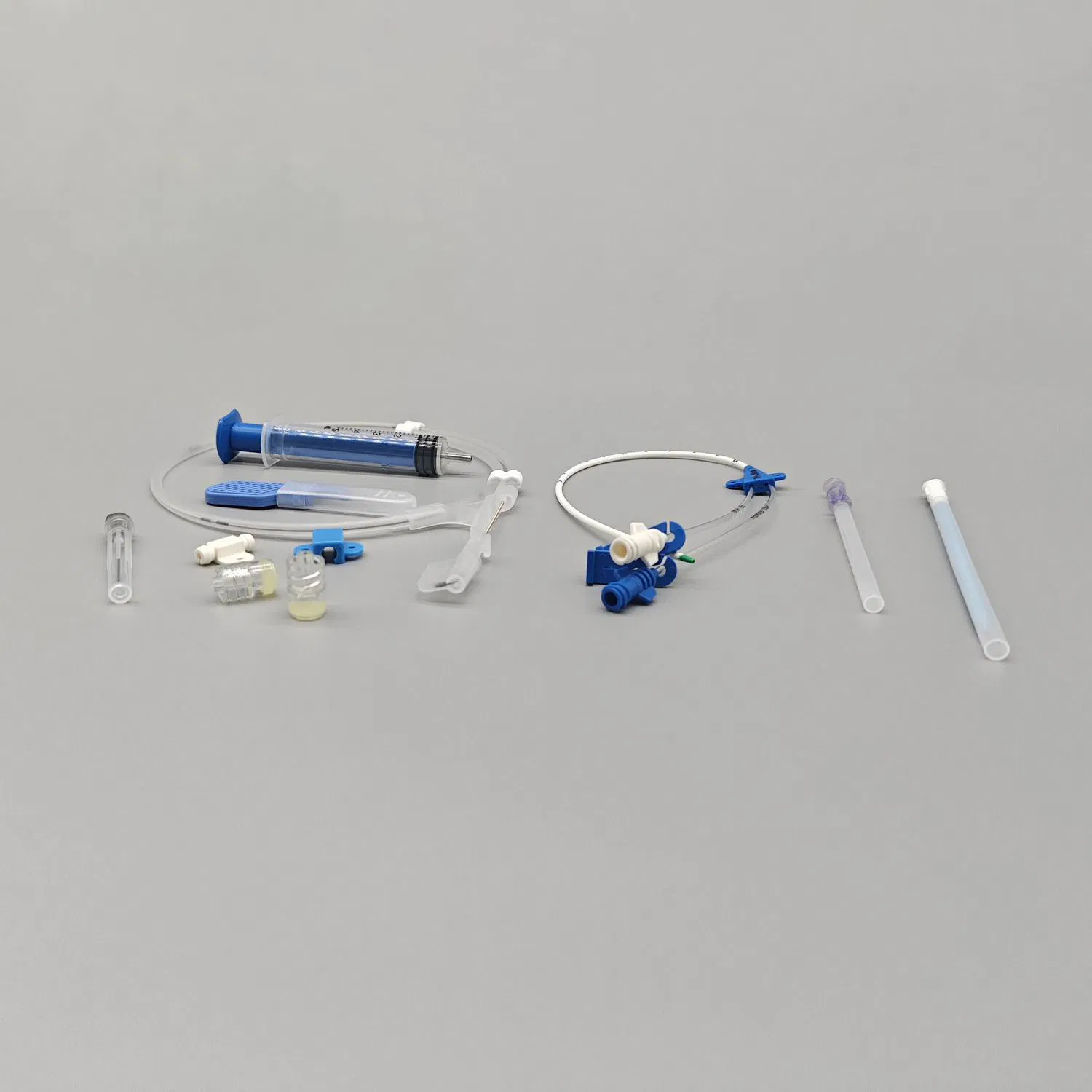

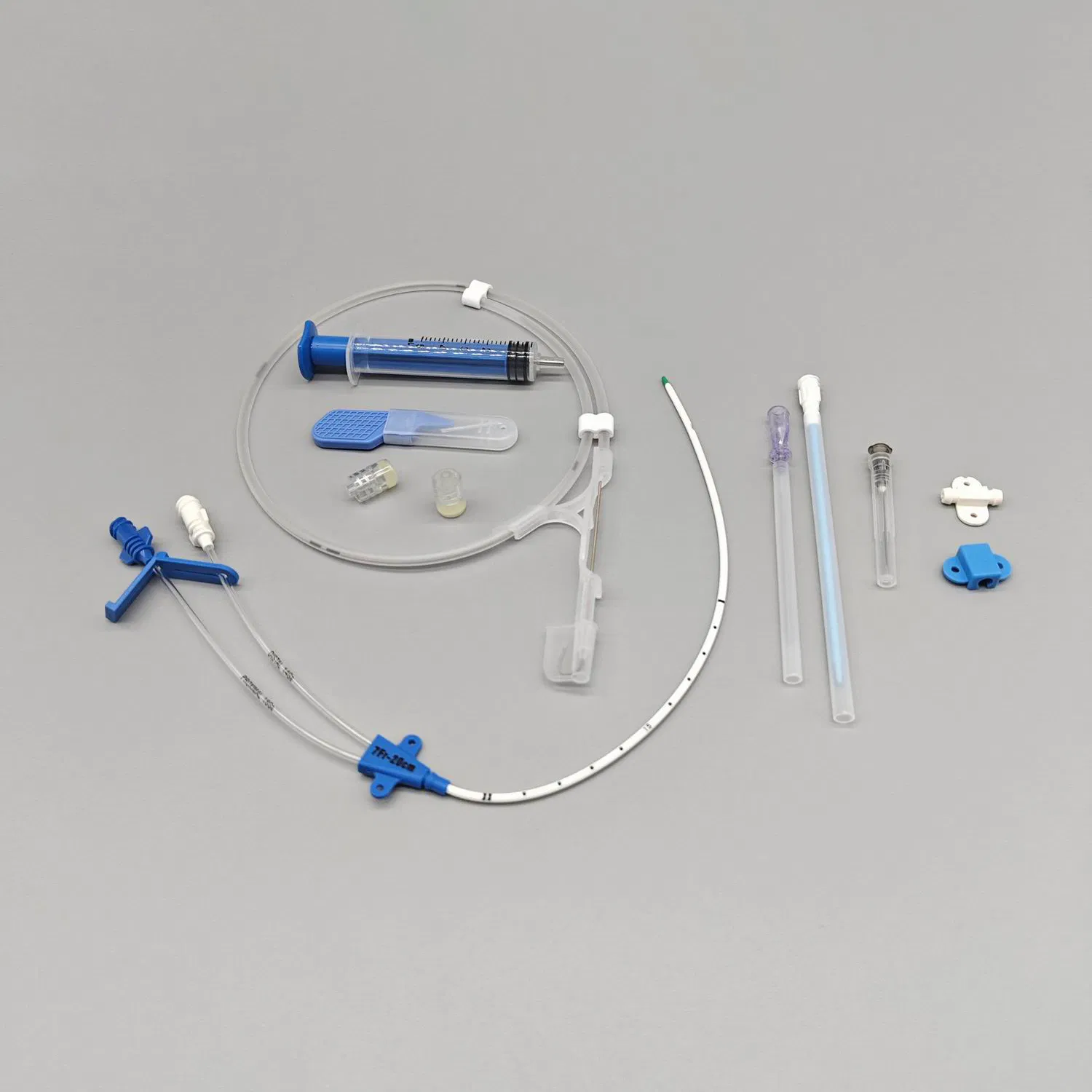

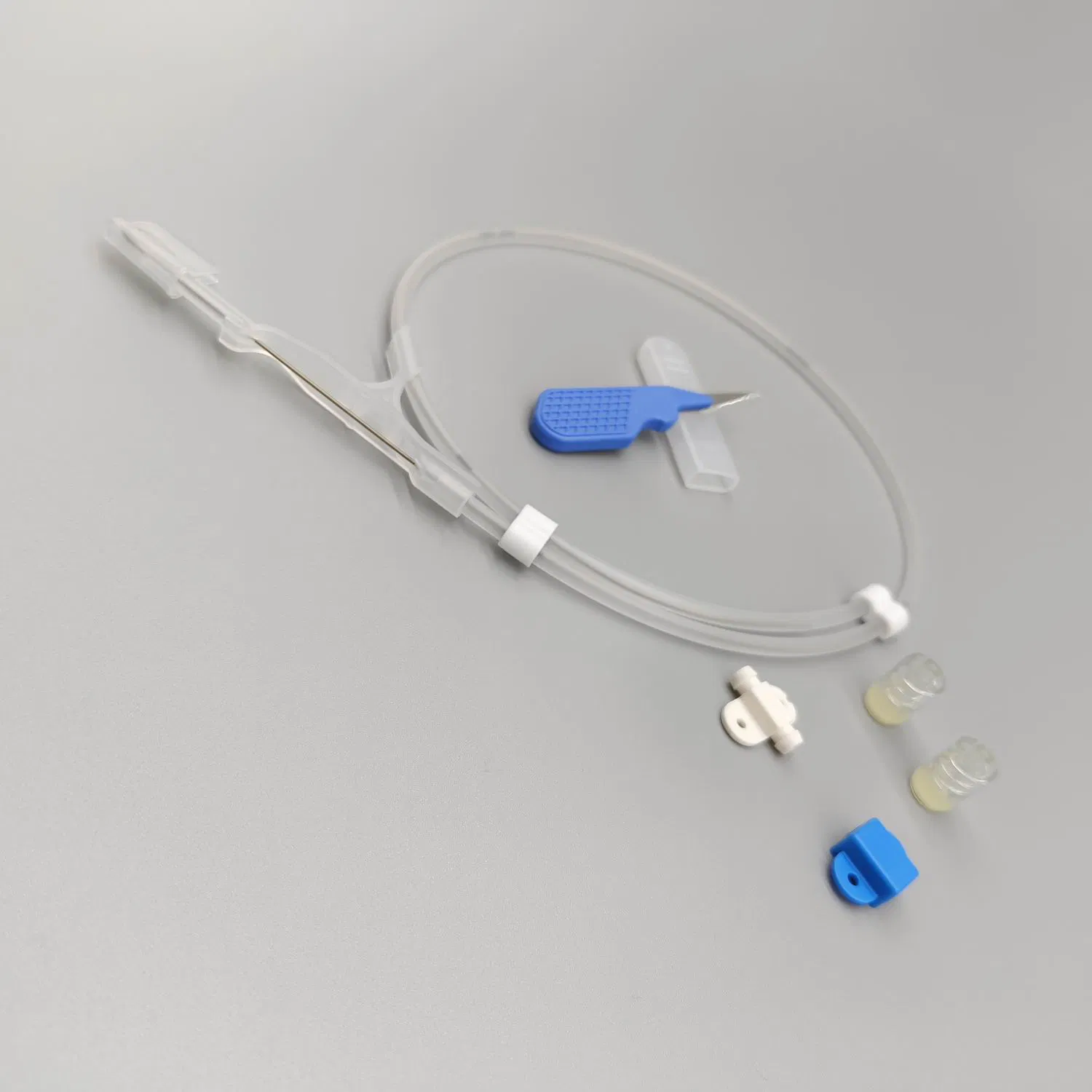

The Central Venous Catheters (CVC) are a sterile, single use range of short term polyurethane catheters designed to facilitate infusion therapy in a critical care environment. They are available in four configurations; single, double, triple and quad lumen and in a variety of lengths. The multi lumen variants provide dedicated lumens for infusion therapy, pressure monitoring and venous sampling. The CVC's are packaged along with the components and accessories considered necessary for their percutaneous insertion. All CVC kit and sets are sterilized by ethylene oxide.
| Number of Lumen | O.D. | Effective Length | |
|---|---|---|---|
| Ga / Fr | mm | ||
| Single | 14Ga | 2.00 | 130, 160, 200, 300 |
| 16Ga | 1.70 | 130, 160, 200, 300 | |
| 18Ga | 1.40 | 50, 80, 130, 160, 200, 300 | |
| 20Ga | 1.15 | 50, 80, 130, 160, 200 | |
| 22Ga | 0.09 | 50, 80, 100, 130, 160, 200 | |
| Double | 4Fr | 1.40 | 50, 80, 100, 130, 160, 200 |
| 5Fr | 1.70 | 50, 80, 30, 160, 200 | |
| 7Fr | 2.40 | 130, 160, 200, 250, 300 | |
| 8Fr | 2.70 | 130, 160, 200, 300 | |
| 8.5Fr | 2.85 | 130, 160, 200, 300 | |
| Triple | 4.5Fr | 1.50 | 50, 60, 80, 130, 160, 200 |
| 5.5Fr | 1.85 | 50, 80, 130, 160, 200 | |
| 7Fr | 2.40 | 130, 160, 200, 250, 300 | |
| Quad | 8.5Fr | 2.85 | 130, 160, 200, 300 |
The Central Venous Catheters may be applicable to the one of following therapy:
The Catheter is surgically penetrated into three optional puncture points (Seldinger Technique):
Contraindications & Warnings:
This product is disposable, read instructions carefully before use. The condition of the device must be verified prior to use. The manufacturer is not responsible for any damage from inappropriate use or reuse. Reuse could cause infection or serious incidents.
Storage Requirements:
Keep in a cool, dry, and ventilated environment (Temp < 40°C, Humidity 30% - 80% RH). Protect from direct sunlight.
