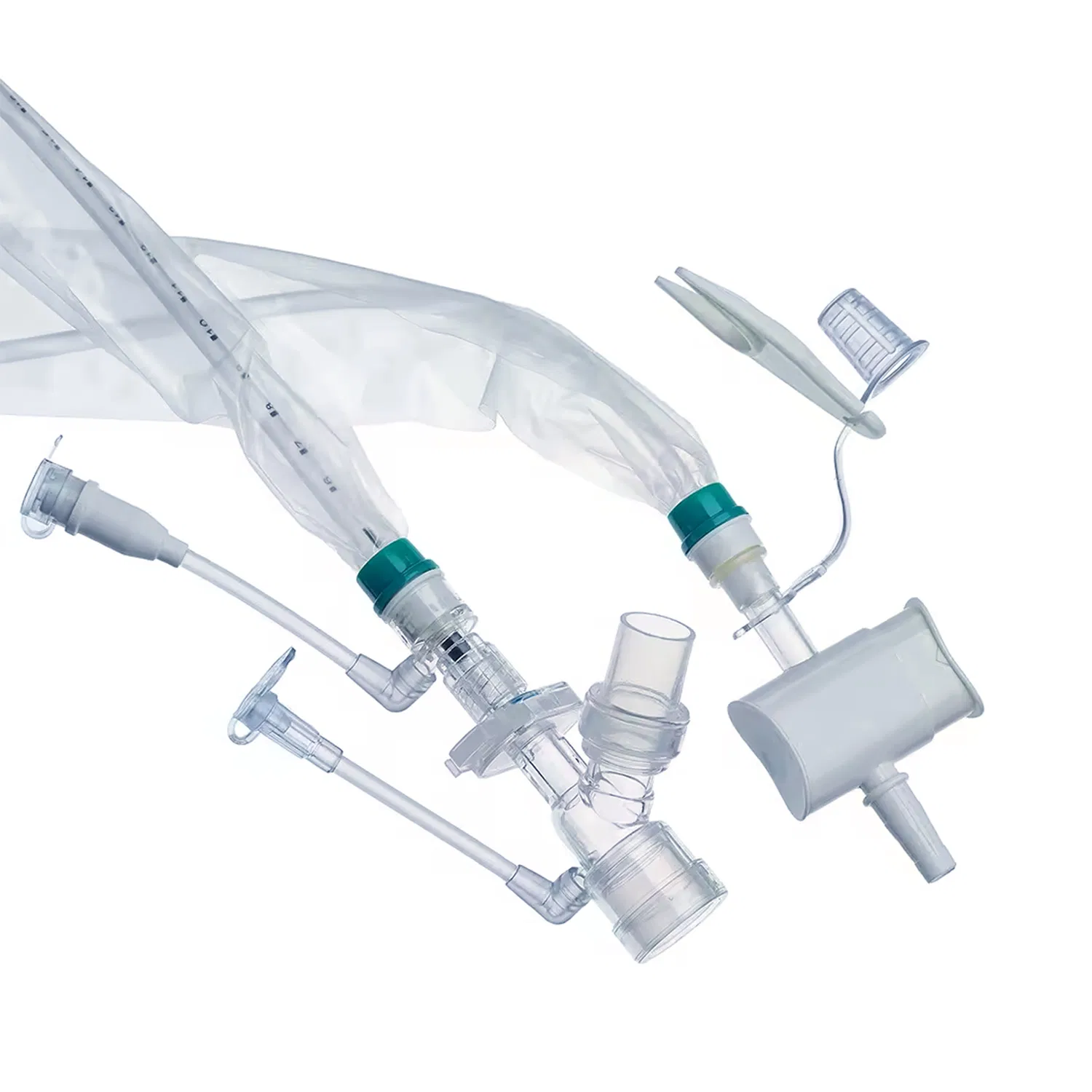

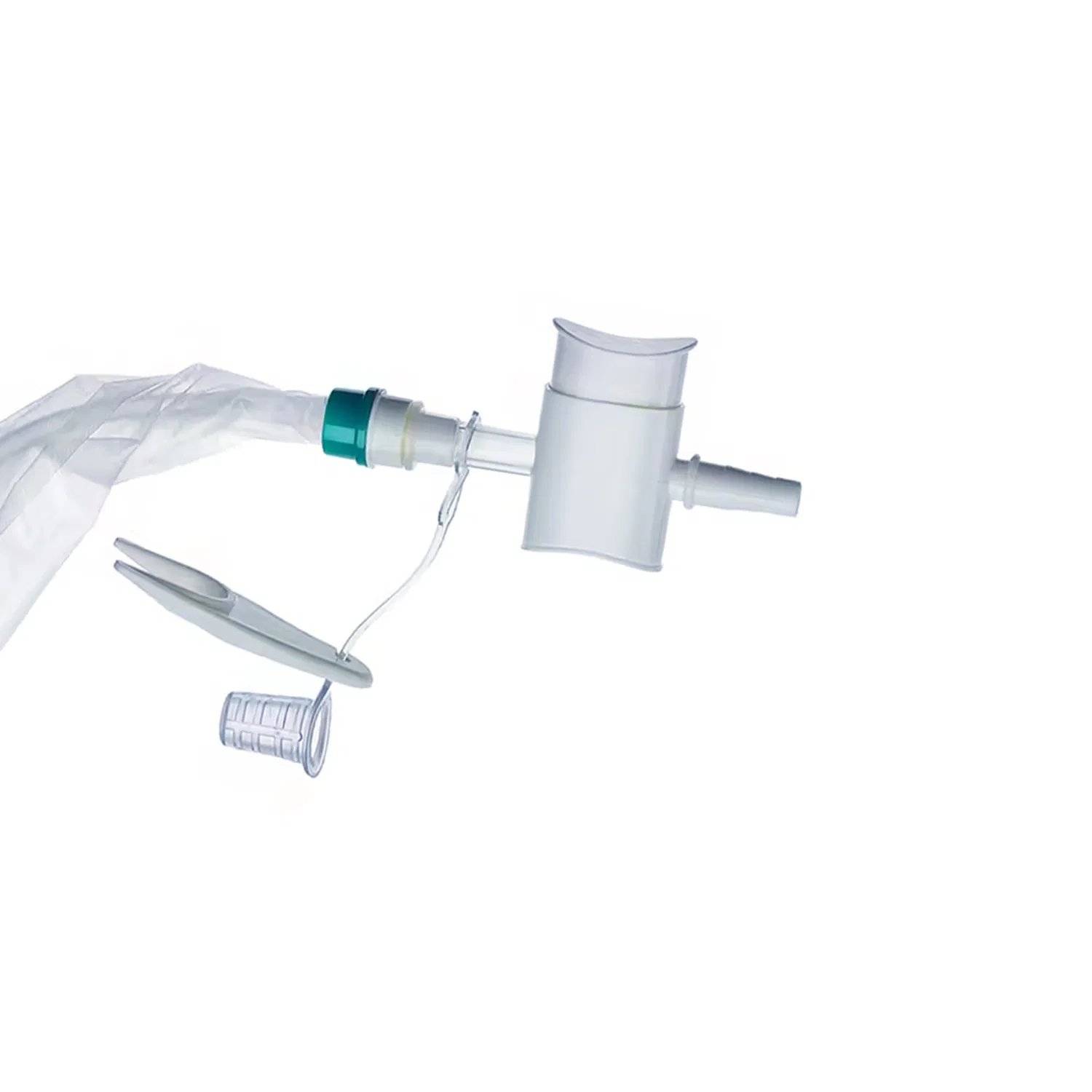

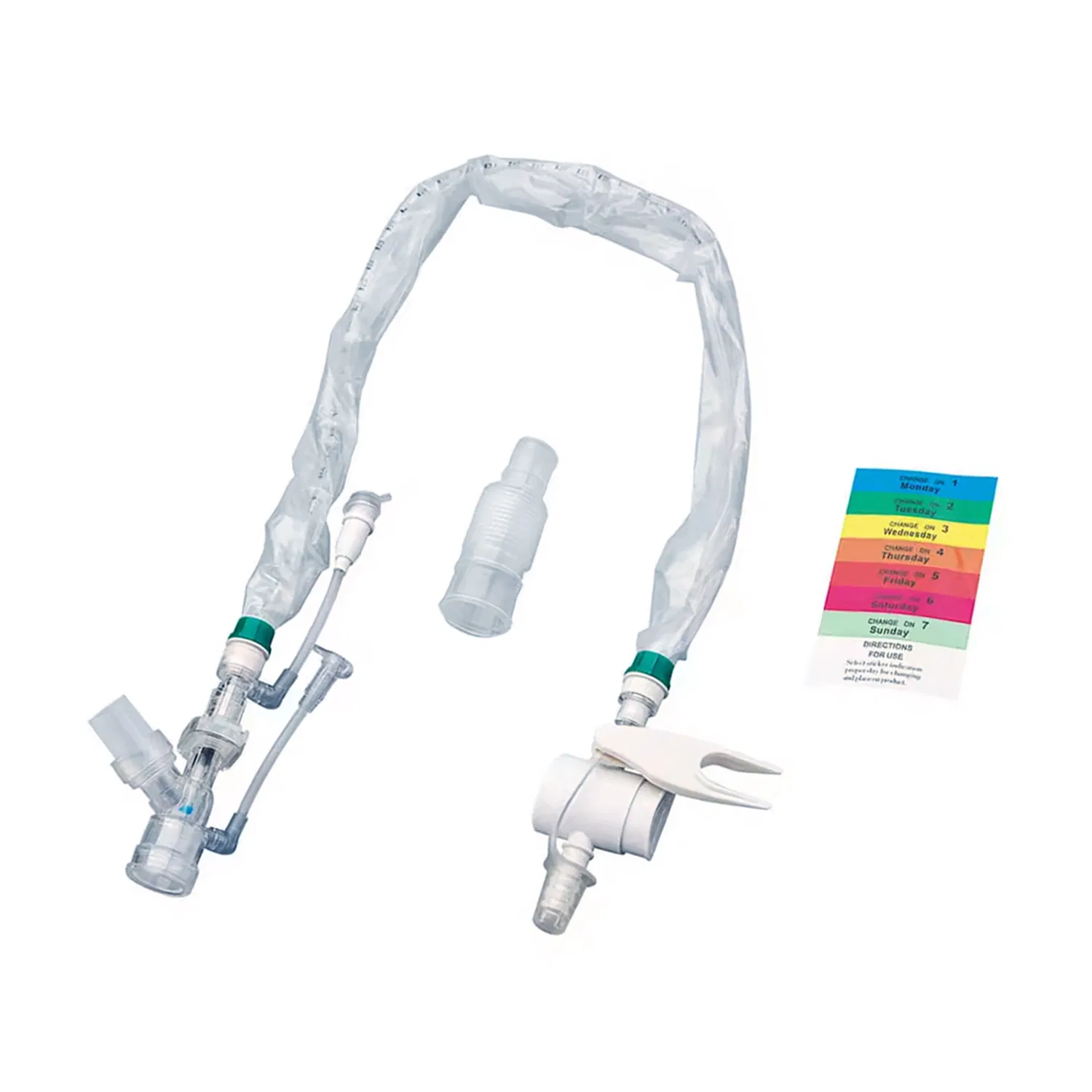

72-Hour/24-Hour Disposable Closed Suction Catheter for ICU (Adult & Child)

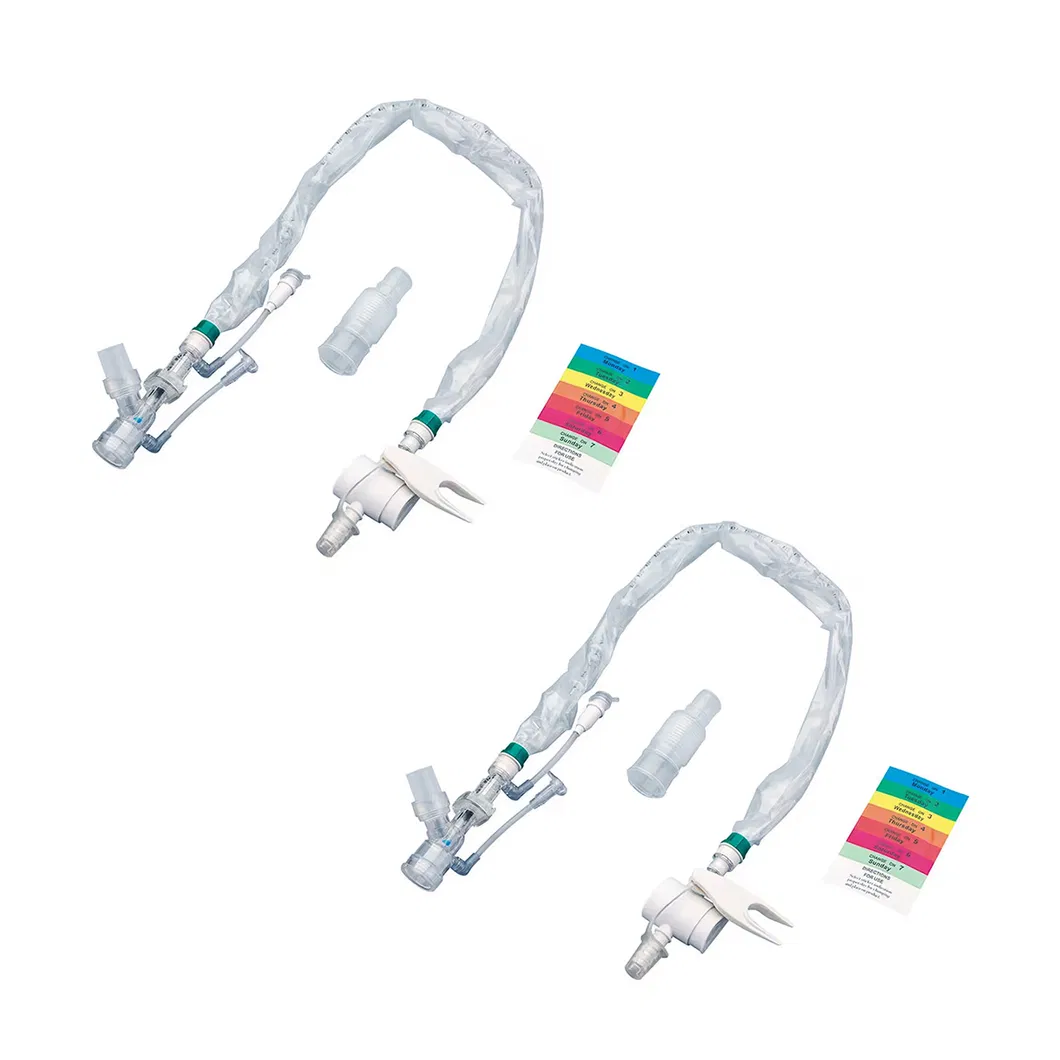

72H Closed Suction System Y-Type

The Closed Suction System is a vital tool in medical settings for effectively suctioning sputum or secretions from patients' respiratory tracts while maintaining a closed environment. This innovative system reduces the risk of cross-infection, ensuring a safe and hygienic suctioning process.

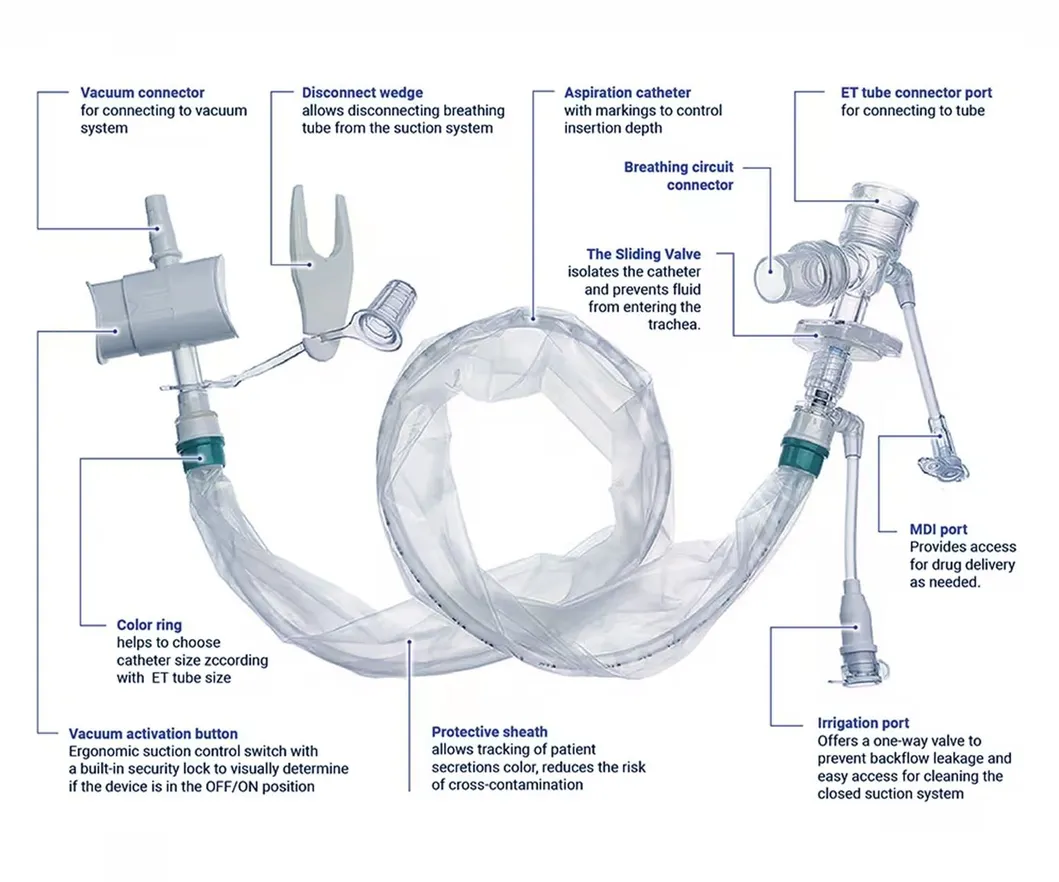

Core Features

• Single Lumen, 72-Hour usage

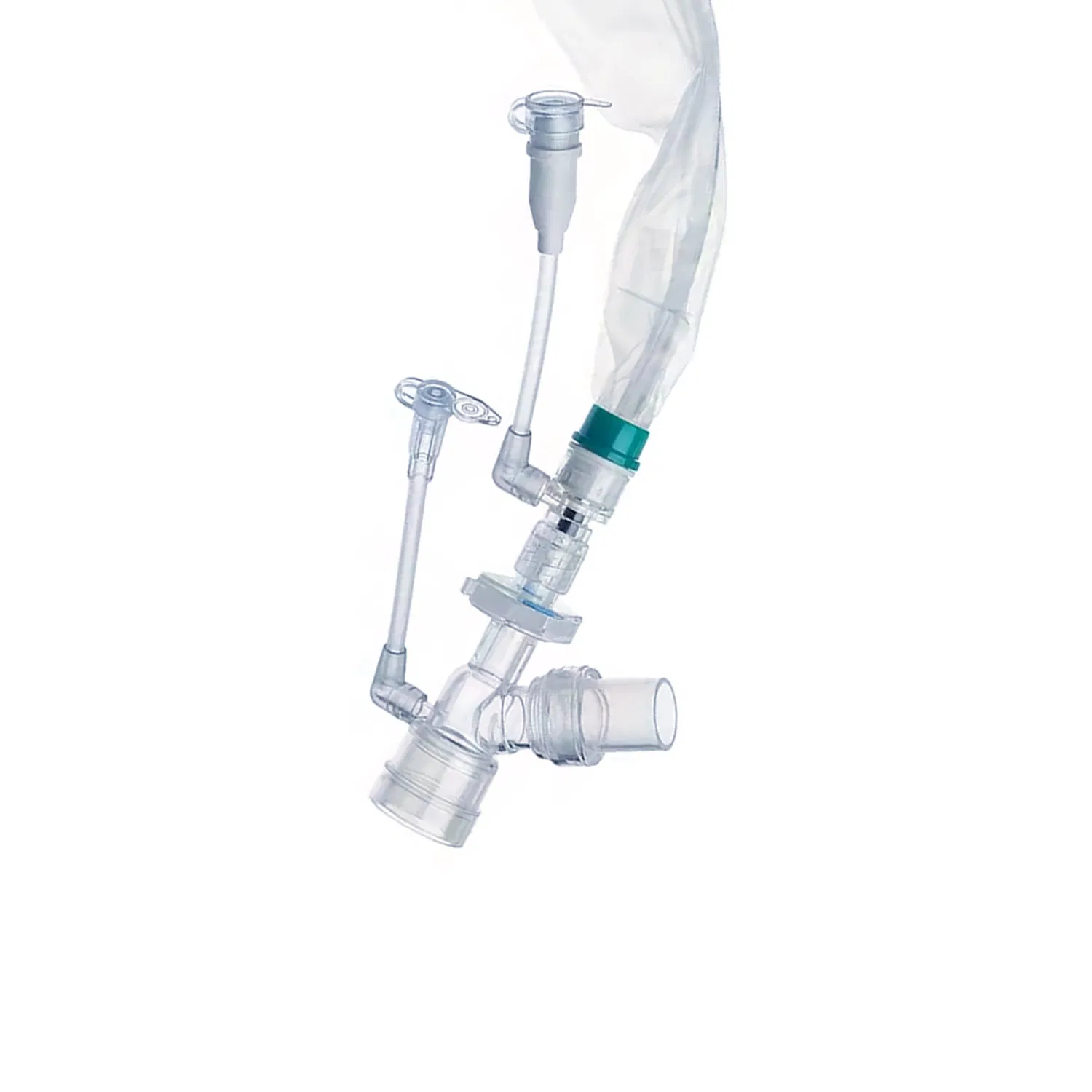

• Double Swivel Elbow design
• Y-Type & Push Switch for ease of use
• Push switch and luer lock design helps maintain breathing and isolate the cleaning chamber, reducing the risk of VAP.
• Protective sleeve prevents cross-infection by isolating germs.
• Allows patients to breathe during mechanical ventilation and suctioning simultaneously.
• Soft and smooth suction tip minimizes damage to mucous membranes.
• Double swivel connectors reduce strain on ventilator tubing.
• Equipped with a wedge (separator) for easy operation and disconnection.

Directions for Use

1. Prepare suction system, machine, sterile gloves, and mask.
2. Check integrity of catheter, tubes, and negative pressure valve.
3. Evaluate patient consciousness and respiratory status.
4. Ensure patient can tolerate suctioning; provide sedation if needed.
5. Connect closed suction catheter securely to the suction machine.
6. Ensure the valve is closed to prevent air leaks.
7. Maintain a sterile field with gloves and mask.
8. Insert catheter into airway (approx. 25-30cm) until resistance is felt, then withdraw 1-2cm.
9. Press suction valve while withdrawing catheter in a spiral motion (max 15 seconds).

Contraindications

Patients with serious breathing difficulties or acute respiratory tract injury are prohibited from using this system.

Safety Cautions

• Disposable product: Do not reuse or use expired items.
• For use by trained nursing staff only.
• Do not use if packaging is damaged.
• Maintain sterile technique at all times.
• Select appropriate size based on patient condition.
• Avoid excessive suctioning to prevent mucosa injury.
