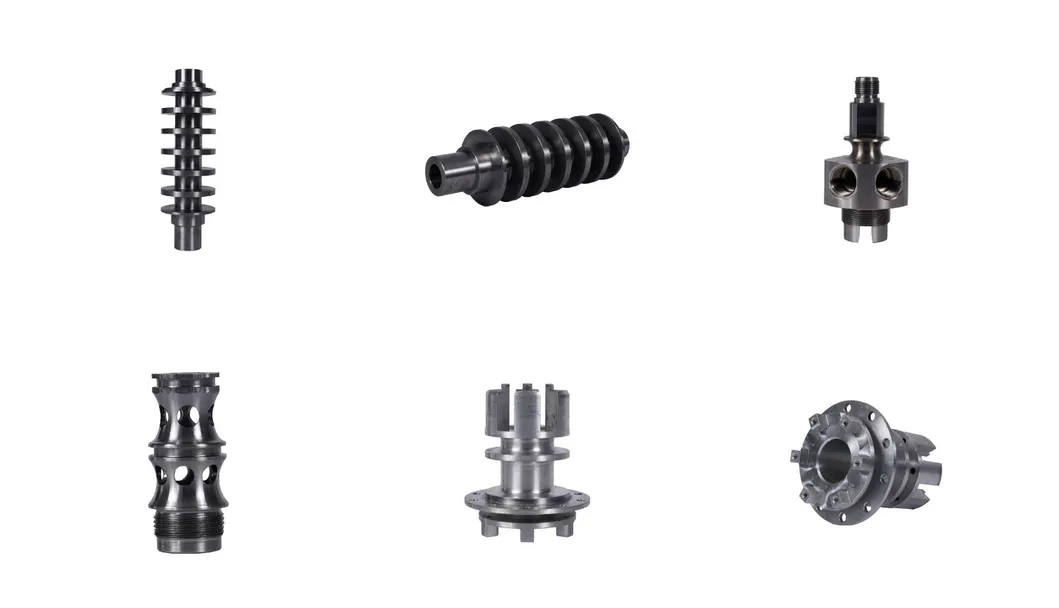

Precision CNC Rotary Table Accessories for Engineers Worldwide

Customization:	Available
After-sales Service:	Express Delivery
Warranty:	One Year Warranty

📊 Basic Info & Overview

Model NO.	Customised non-standard parts	Prototype	Aluminium Alloy Hardware
Application	Medical Sensor/Valve/Tube/Connector/Fastener Parts	Components	Medical Shaft/Gear/Bearing/Seal/Actuator Parts
Hardware	Medical Handle/Knob/Latch/Clip/Bracket Parts	Structural	Medical Housing/Plate/Rod/Wire/Membrane/Electrode Parts
Specialized	Medical Probe/Catheter/Pacemaker/Defibrillator/Monitor/Ventilator Parts	Package	Wooden Box Carton
Production Capacity	150,000 pcs	HS Code	0101101010

⚙️ Product Description

OEM ODM factory source CNC prototype custom production service. Unlock unparalleled potential in your manufacturing operations with our bespoke production solutions.

Technical Specifications
Material Capabilities	Aluminium, Brass, Bronze, Steel, Stainless Steel, Titanium, Plastic (POM, PEEK, ABS, etc.)
Workflows	CNC Machining, CNC Turning, CNC Milling, CNC Lathe, 5-Axis / Mill-Turn

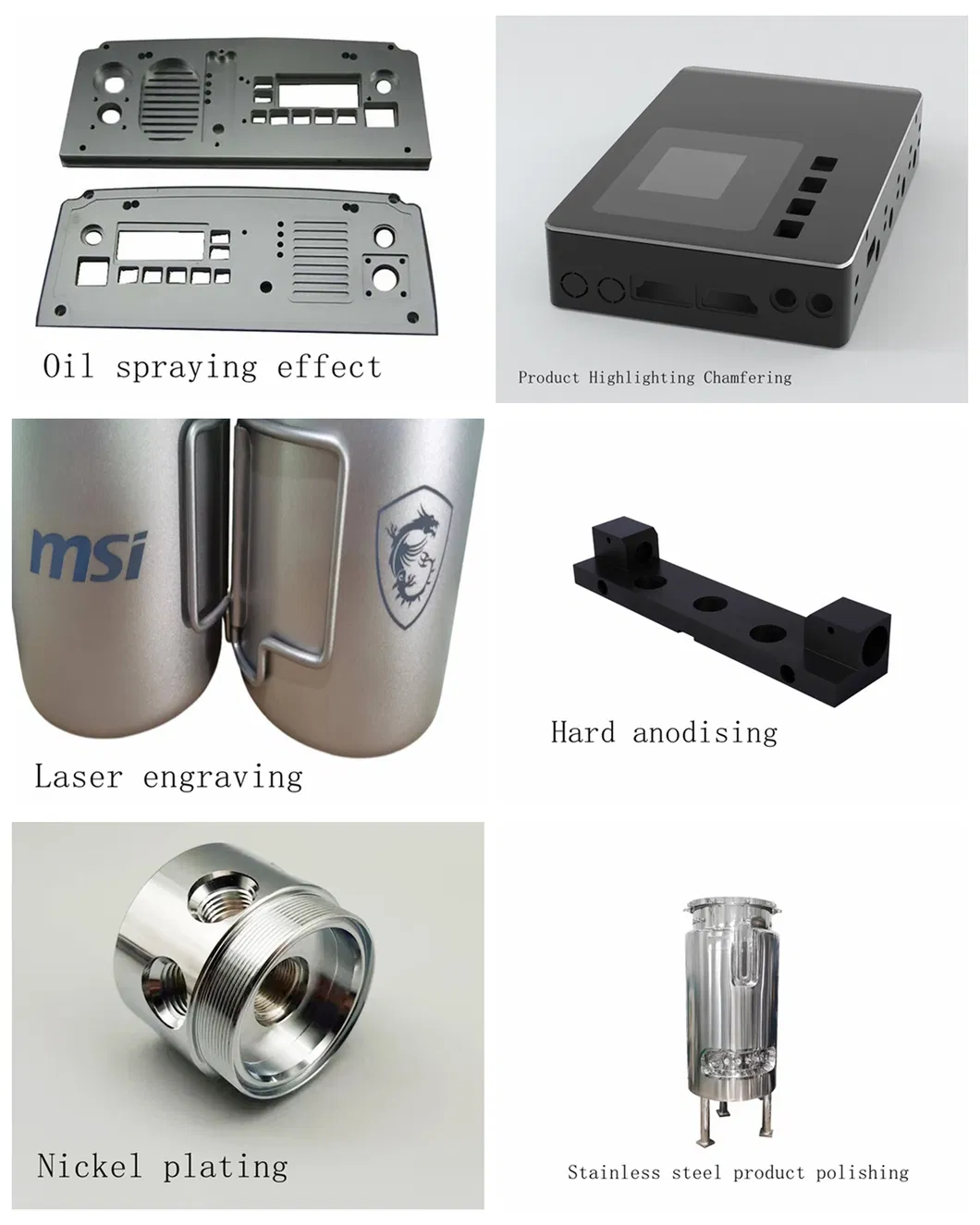

Surface Treatment	Sandblasting, Anodising, Powder Coating, Polishing, Chrome Plating, Electropolishing, Laser Etching
Tolerances	±0.01mm ~ ±0.05mm
Surface Roughness	Ra 0.1~3.2
Drawing Format	2D (PDF/CAD), 3D (STP/STEP/X-T/IGS)

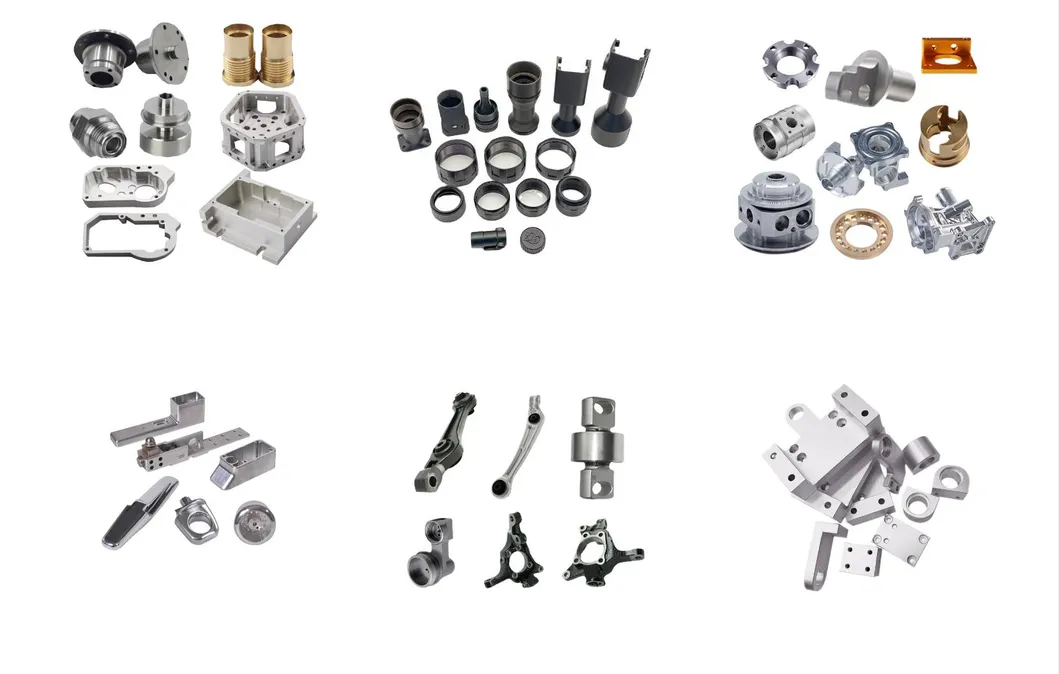

RELATED PRODUCTS

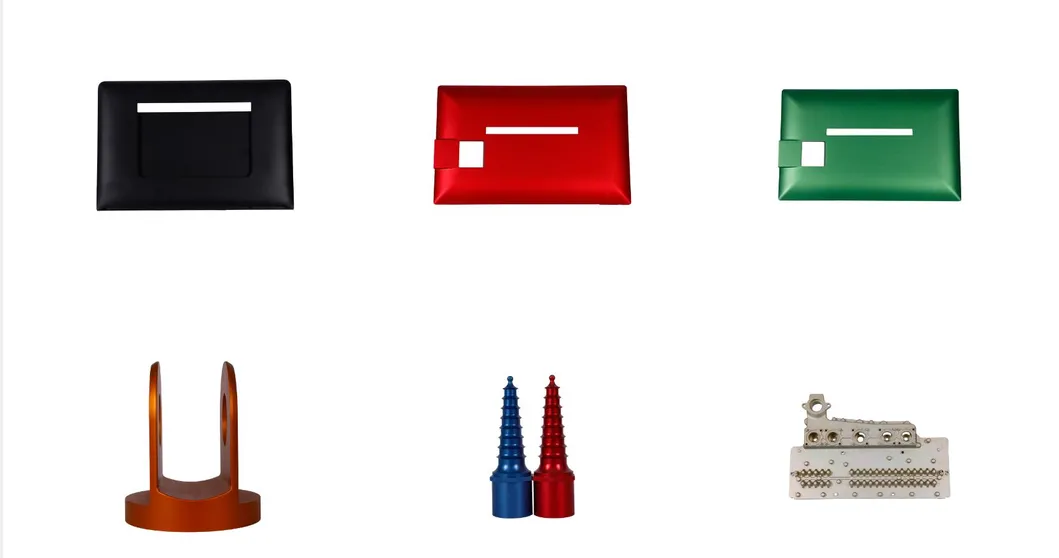

🔍 Reference Samples

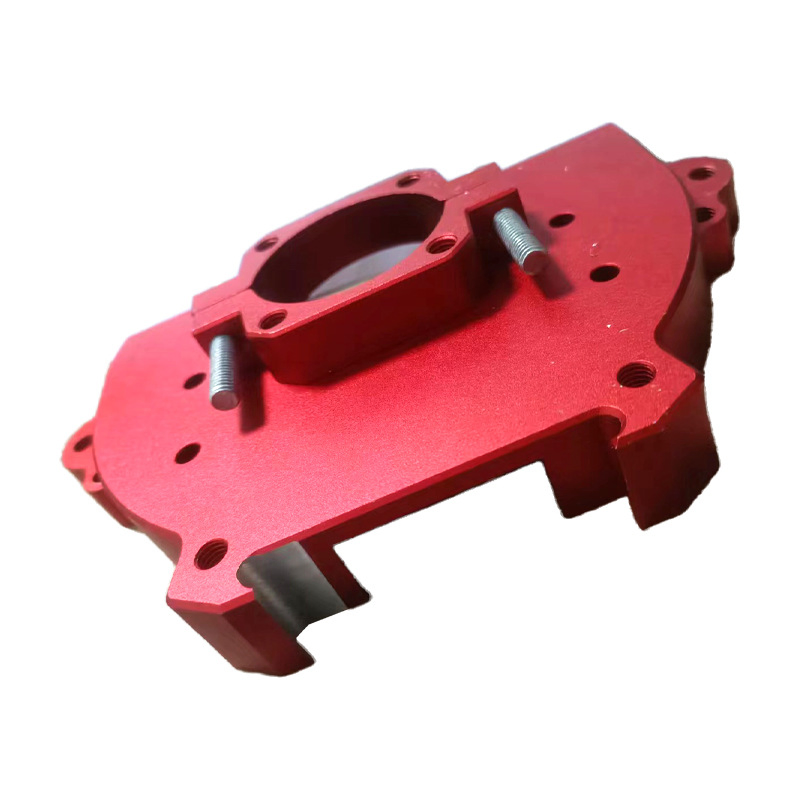

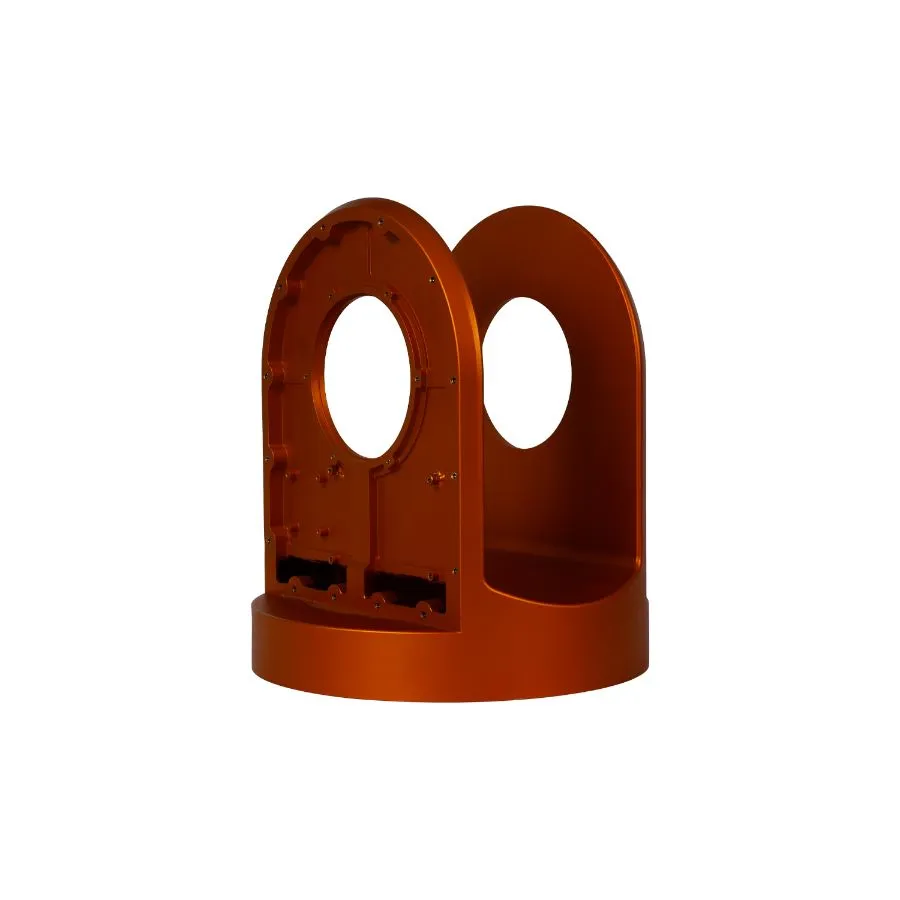

Material: AL:6061-T6, 6083, 7075

Treatment: Red sandblasted anodised finish

Ra 1.6

Material: AL:5083, 5052, 6061-T6

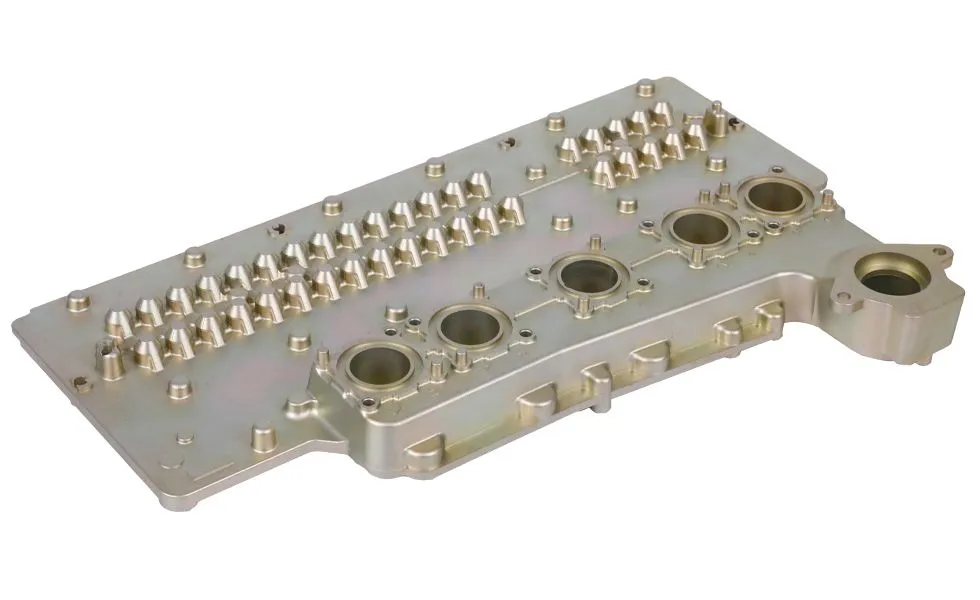

Treatment: Gold anodised finish

High Conductivity

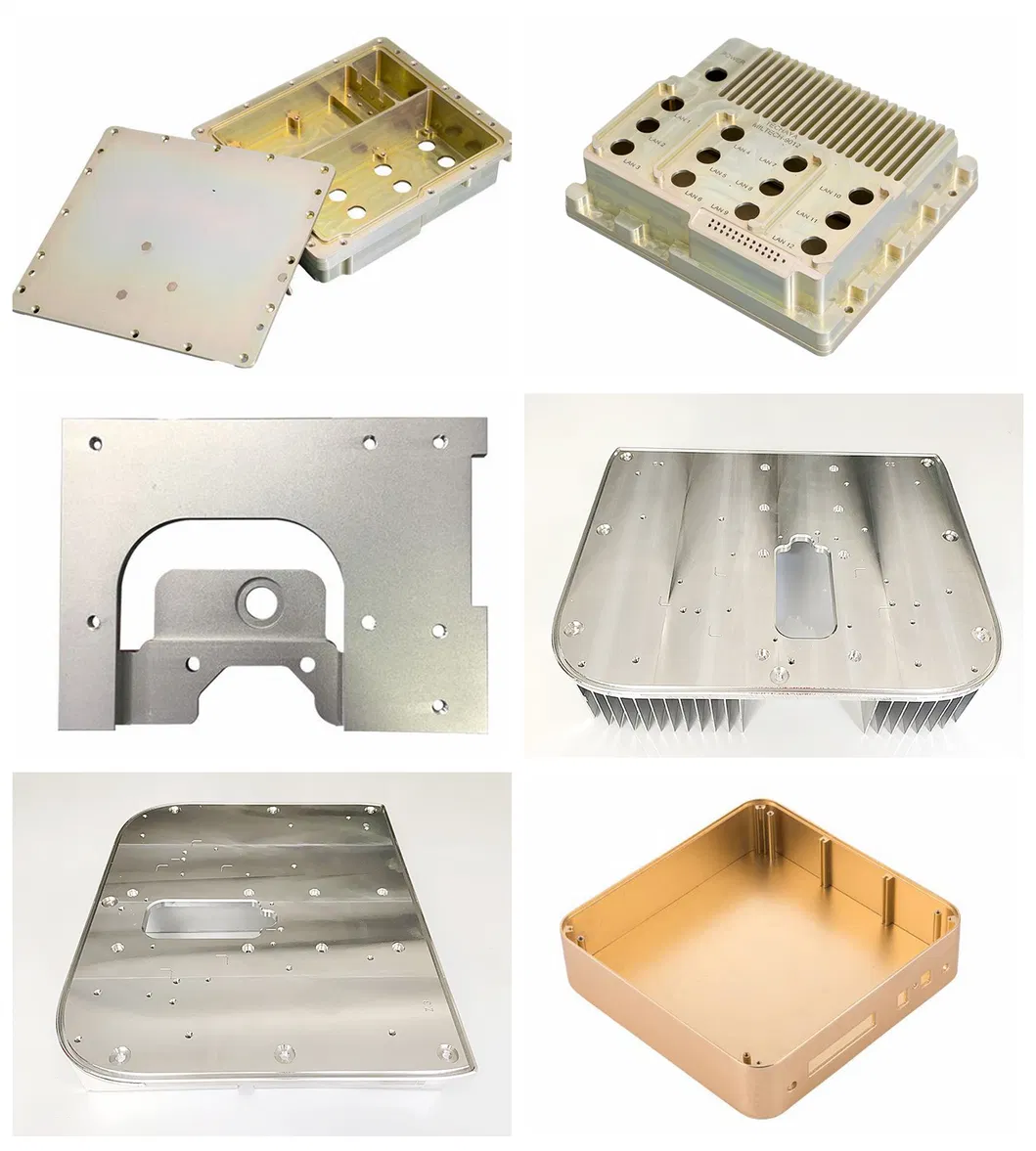

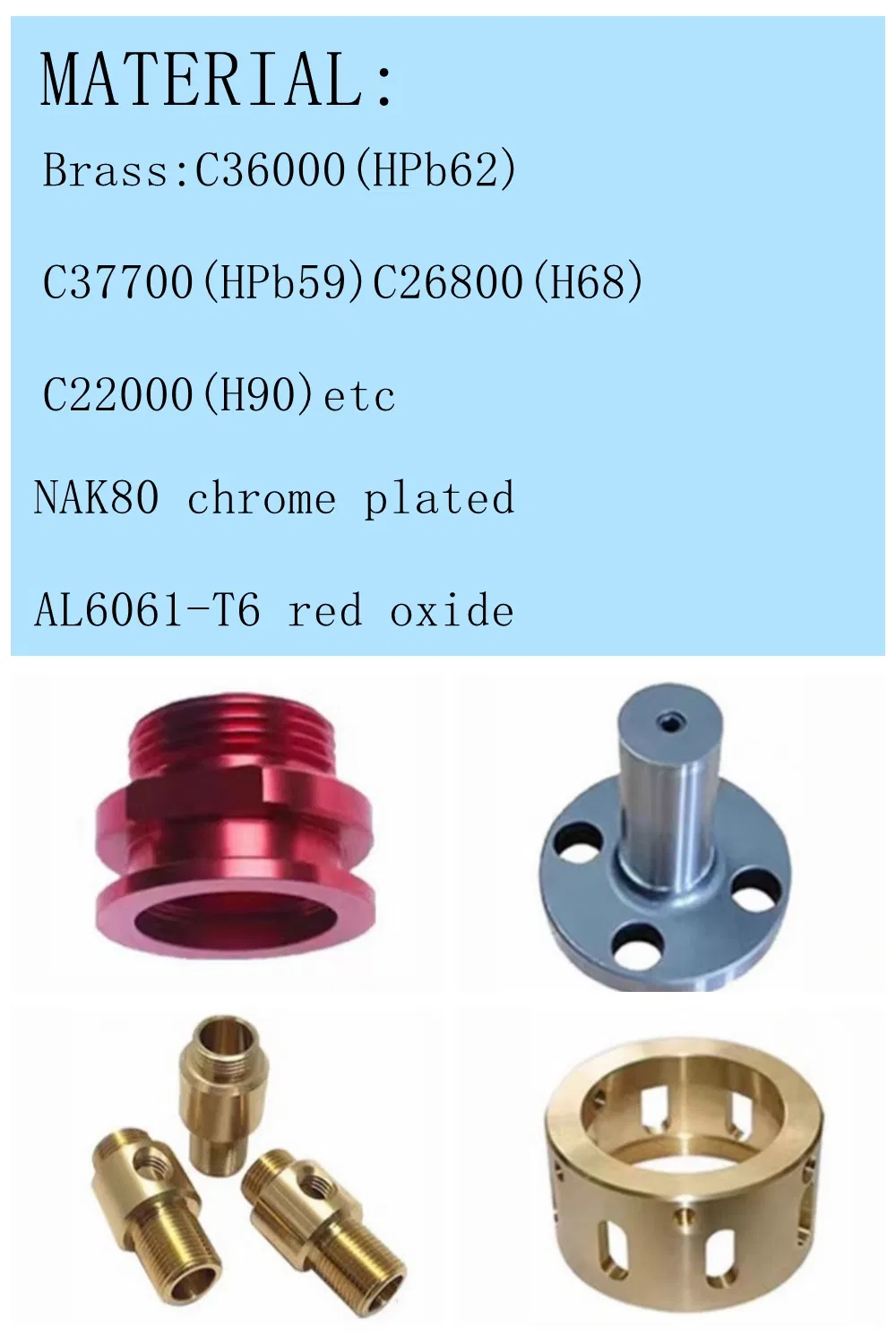

📸 Detailed Photos & Capabilities

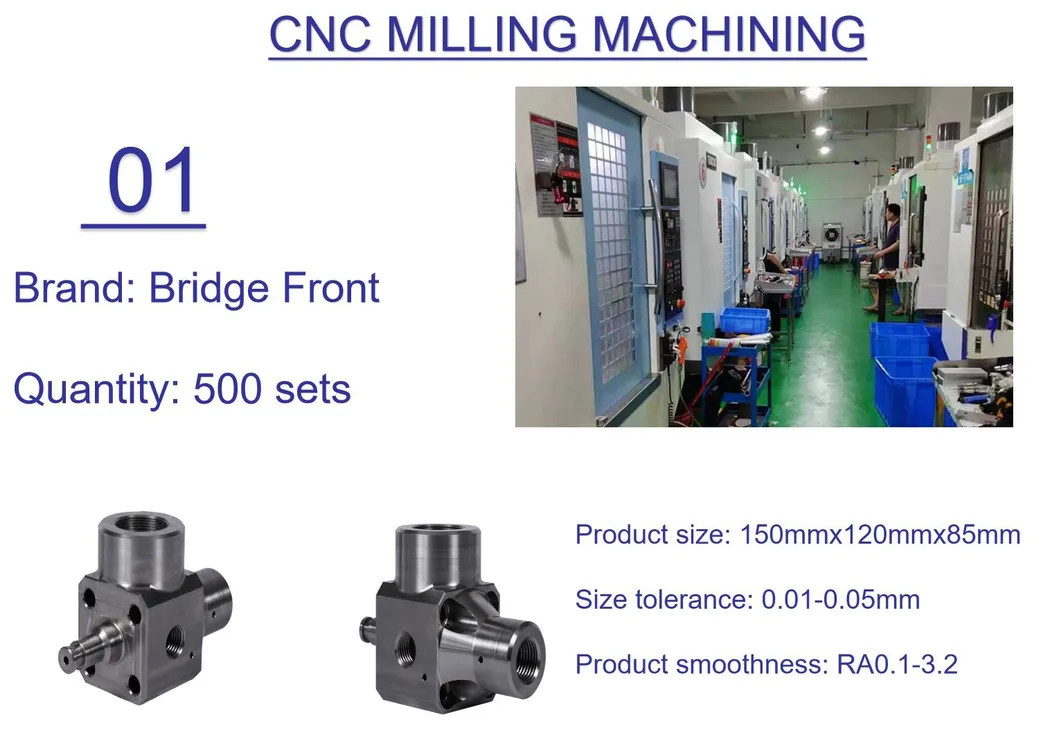

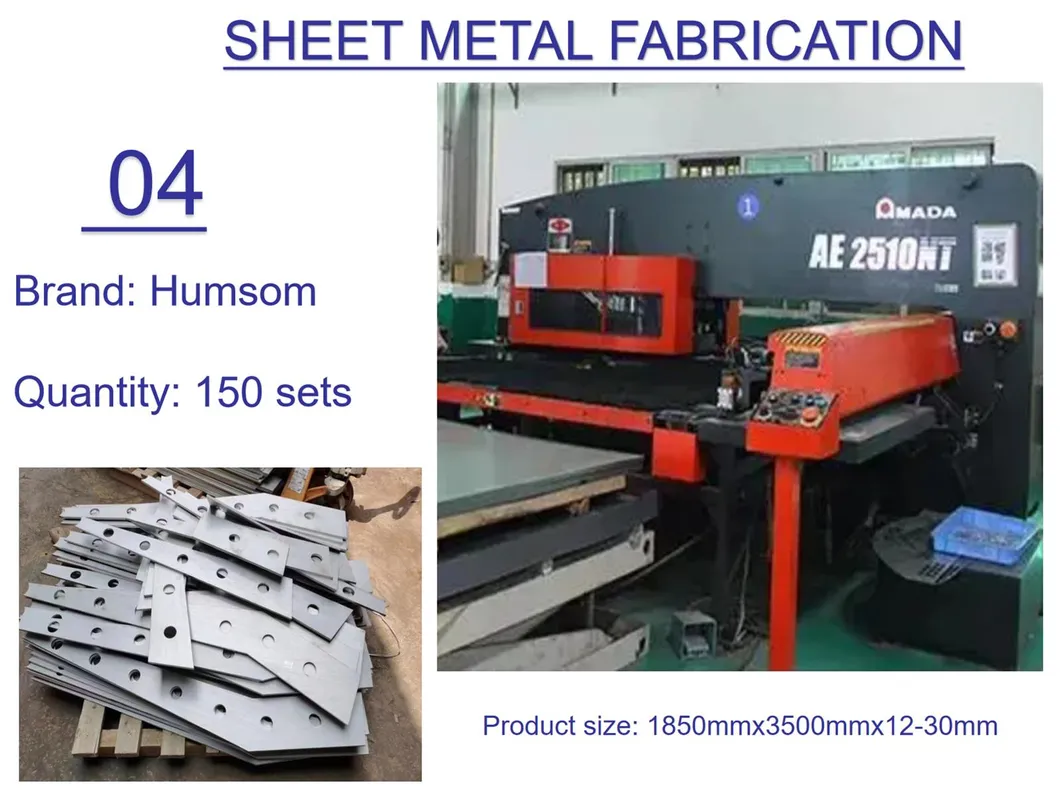

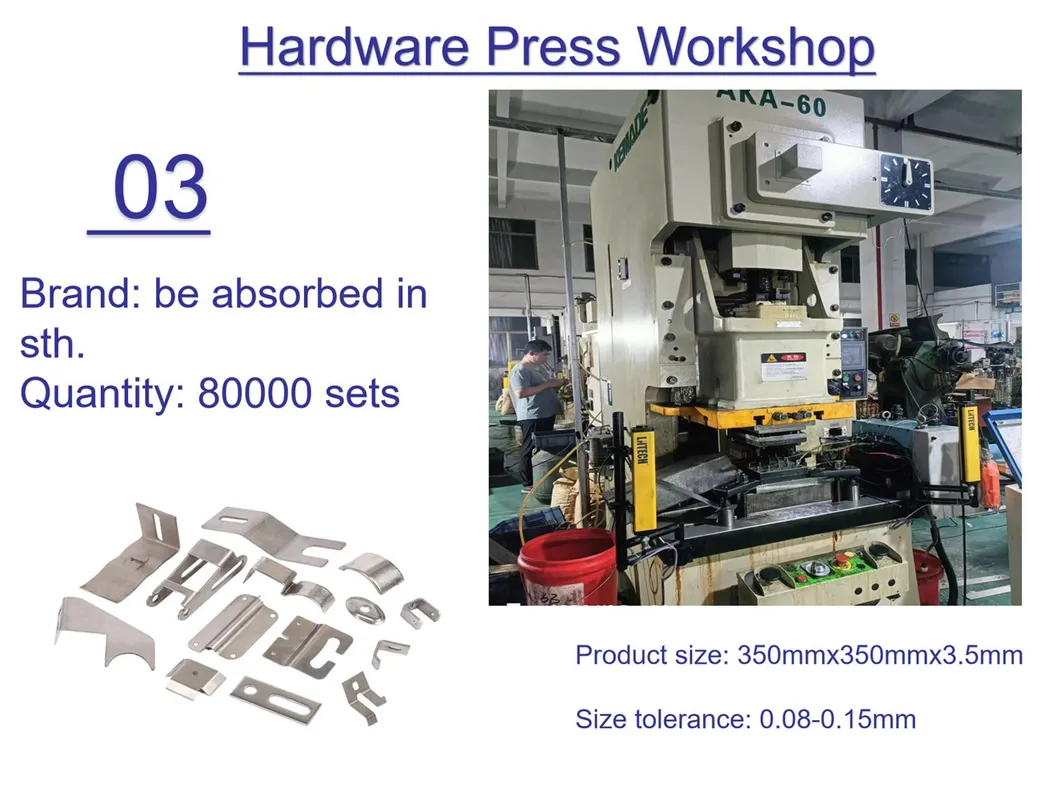

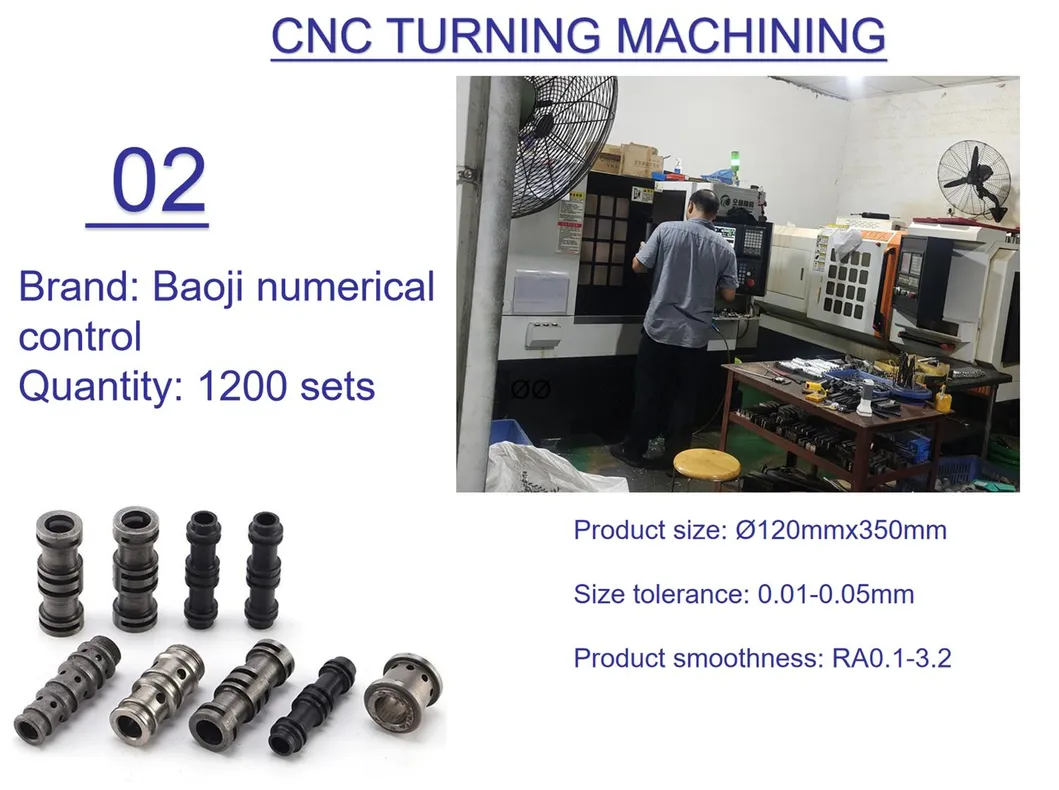

🏭 Machining Capacity

✅ Quality Control & Standards

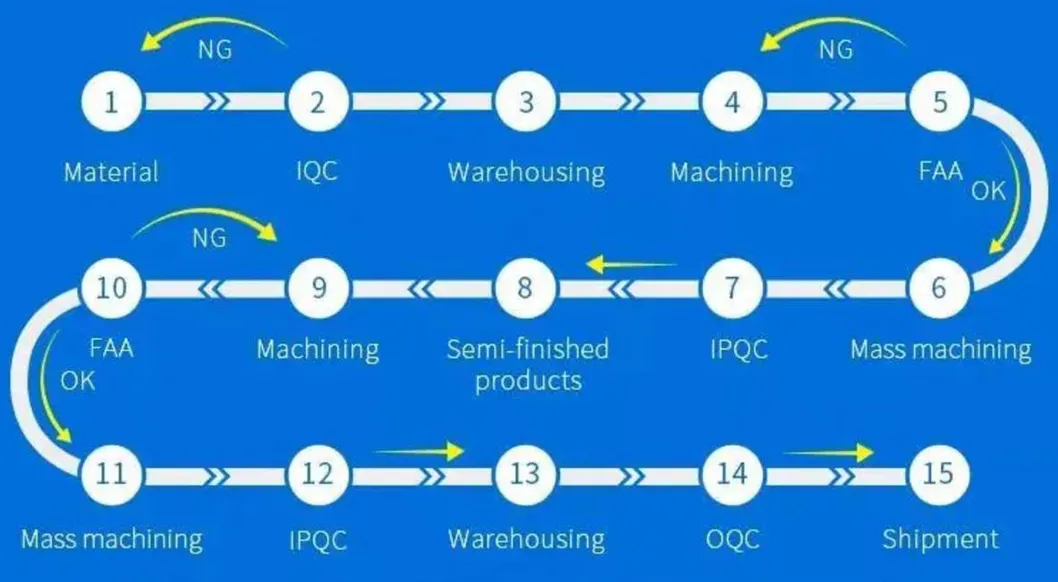

Daily Inspection Process: Our rigorous QC process employs a wide array of precise dimensional inspection tools including CMM, micrometers, and optical comparators daily.

CNC Machining Standards
Measurement Type	Metric Dimension	Imperial Dimension
Linear Size	±0.025mm	±0.001 inches
Bore Diameter	±0.025mm	±0.001 inches
Shaft Diameter	±0.025mm	±0.001 inches
Part Size Limitations	2200x1850x350mm	86x72x13 inches

📜 Certifications & Logistics

Packing and dispatching are crucial links. We use wooden boxes, cartons, and pallets according to customer requirements. Our strict quality control system ensures consistency with the order and smooth customs clearance for sea, air, or land transport.

❓ Frequently Asked Questions

What materials can you process for medical parts?

We handle a wide range of materials including Aluminium Alloys (6061, 7075), Stainless Steel (303, 304, 316L), Titanium (TA2, TC4), Brass, and high-performance plastics like PEEK and POM.

What is your typical lead time for custom prototypes?

Samples typically take 3-7 days, while bulk orders usually require about 30 days depending on the complexity and volume.

What precision level can you achieve?

We offer tolerances as tight as ±0.01mm. We strictly adhere to ISO 2768 M standards for parts without specific 2D drawings.

Do you provide surface finishing in-house?

Yes, we offer comprehensive surface treatments including sandblasting, anodizing (various colors), powder coating, polishing, and plating.

Which file formats do you accept for quotations?

We accept 2D formats (PDF, CAD) and 3D formats such as STP, STEP, X-T, and IGS for detailed production analysis.

How do you ensure the quality of medical components?

Our facility is equipped with a complete testing lab including CMM, optical comparators, and micrometers to perform rigorous daily inspections on every batch.
